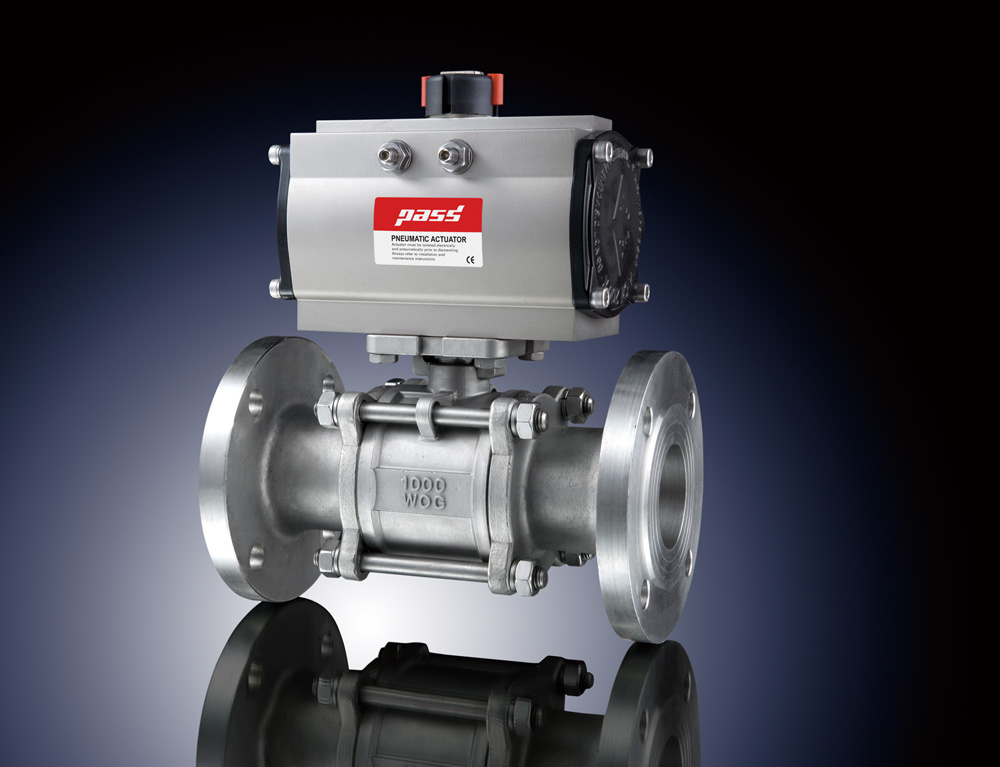

Pneumatic Stainless Steel Flanged Ball Valve
Price: |
Negotiable/Piece |
Min Order: |
1 /Piece |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
Connection Form: |
Flange |
Work Pressure: |
High Pressure (',10.0mpa< Pn <80.0mpa) |
Seal Form: |
Force Sealed |
Material Of Seal Surface: |
Metal Hard Sealed |
Structure: |
Double-Eccentric Sealing |
Product Description
DESIGN FEATURES:
Fire Safe Design and Construction
Built-in ISO 5211 Direct Mounting Pad for Easy Automation
Anti-static Devices for Ball-stem-body
Blow-out Proof Stem
Double Stem Sealing to Comply with TA-LUFT Requirements
APPLICABLE STANDARDS:
Design: GB/T12237, ANSI B16.34, API 608
Face to Face: GB/T12221, ASME B16.10, JIS B2002
Wall Thickness: GB/T9113, ASME B16.5, JIS B2212/JIS B2214
End Flange: ASME B16.34
Fire Safe: API 607 4th 1993
Inspection & Testing: GB/T 13927, API598, JIS B2003
Diameter |
Size(mm) |
mm |
inch |
PN |
D |
L |
H1 |
Double acting pneumatic |
Single acting pneumatic |
Electric |
H2 |
A1 |
H2 |
A2 |
H2 |
A3 |
15 |
1/2 |
16/25/40 |
15 |
130 |
48 |
144 |
145 |
163 |
195 |
153 |
72 |
20 |
3/4 |
16/25/40 |
20 |
130 |
53 |
149 |
145 |
168 |
195 |
158 |
72 |
25 |
1 |
16/25/40 |
25 |
140 |
64 |
179 |
158 |
201 |
217 |
188.5 |
160 |
32 |
1-1/4 |
16/25/40 |
32 |
165 |
72 |
187 |
158 |
209 |
217 |
196.5 |
160 |
40 |
1-1/2 |
16/25/40 |
38 |
165 |
77 |
214 |
177 |
224 |
258 |
201.5 |
160 |
50 |
2 |
16/25/40 |
50 |
203 |
86 |
223 |
177 |
233 |
258 |
210.5 |
160 |
65 |
2-1/2 |
16/25/40 |
65 |
222 |
105 |
252 |
196 |
270 |
299 |
263 |
196 |
80 |
3 |
16/25/40 |
76 |
241 |
120 |
285 |
225 |
302 |
348.5 |
284 |
196 |
100 |
4 |
16/25/40 |
100 |
280 |
142 |
324 |
273 |
341 |
397 |
338 |
255 |
125 |
5 |
16 |
125 |
325 |
183 |
382 |
304 |
404 |
473 |
379 |
255 |
25/40 |
321 |
150 |
6 |
16 |
150 |
350 |
201 |
422 |
372 |
481 |
601 |
397 |
255 |
25/40 |
403 |
200 |
8 |
16 |
200 |
400 |
252 |
532 |
461 |
635 |
940 |
464 |
310 |
25 |
502 |
40 |
502 |
