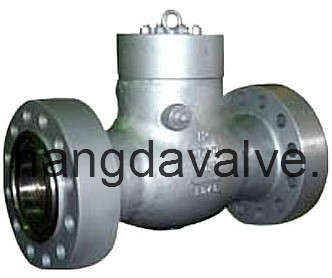

Pressure Sealing Swing Check Valve
Price: |
Negotiable |
Trade Terms: |
FOB |
Min Order: |
1 /Piece |
Pay Type: |
L/C,T/T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Cast Steel |
Structure: |
Swing |
Connection Form: |
Flange |
Product Description
Our company is the professional manufacture of Valve. It is including Ball Valve, Butterfly Valve, Gate Valve Check Valve, Forged steel Valve and Cast steel Valve, etc. Hangda valve co., Ltd is one of the modern high and new technological enterprises collecting researching\producing and trading. It is including Hangda valve and Kunshan Kunfa valve branches.
CLASS 600~2500 PRESSURE SEALING SWING CHEEK valves
Pressure sealing cover, swing type disc
Threaded or welded seat ring
ASTM A216 WCB, A217 Wc6, A351 Cf8, A351 CF8M,
A351 Cf3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: ANSIB16.34, API 6D, BS1868
Face to face(end to end): ANSIB16.10, API 6D
Flanged connection: 2~~24~to ANSIB16.5
Butt welded end: ANSIB16.25
Test and inspection: API 598, API 6D
A. Back up ring: Absorbs thrust applied by internal pressure.
B. Thrust ring: Pretects the soft metallic gasket from detemation.
C. Gasket Unique angutar design provides superior sealing.
Materials List |
NO. |
Part name |
Material |
16 |
Split pin |
Stainless steel |
15 |
Washer |
Stainless steel |
14 |
Disc pin |
CS/SS |
13 |
Hinge pin |
CS/SS |
12 |
Seat ring |
CS+SS/SS/SS+STL(see body materials) |
11 |
Disc |
CS+SS/SS/SS+STL(see body materials) |
NO. |
Part name |
WCB |
LCB |
WC6 |
WC9 |
10 |
Yoke stud& nut |
A193GrB7/A194Gr2H |
A320GrL7/A194Gr4 |
A193 Gr B16/A194Gr4/7 |
A193 Gr B16/A194Gr4/7 |
09 |
Cover stud& nut |
A193GrB7/A194Gr2H |
A320GrL7/A194Gr4 |
A193 Gr B16/A194Gr4/7 |
A193 Gr B16/A194Gr4/7 |
08 |
Gasket |
Soft iron |
Soft iron |
SS304 |
SS304 |
07 |
Thurst ring |
A182 F6a |
A182 F304 |
A182 F11 |
A182 F22 |
06 |
Back up ring |
A182 F6a |
A182 F304 |
A182 F11 |
A182 F22 |
05 |
Yoke |
A216 Gr WCB |
A352 Gr LCB |
A217 Gr WC6 |
A217 Gr WC9 |
004 |
Hinge |
A216 Gr WCB |
A352 Gr LCB |
A217 Gr WC6 |
A217 Gr WC9 |
03 |
Cover |
A216 Gr WCB |
A352 Gr LCB |
A217 Gr WC6 |
A217 Gr WC9 |
02 |
Bonnet |
A216 Gr WCB |
A352 Gr LCB |
A217 Gr WC6 |
A217 Gr WC9 |
01 |
Body |
A216 Gr WCB |
A352 Gr LCB |
A217 Gr WC6 |
A217 Gr WC9 |
NO. |
Part name |
C5 |
LCB |
WC6 |
WC9 |
10 |
Yoke stud& nut |
A193GrB16/A194Gr4/7 |
A193GrB16/A194Gr4/7 |
A193GrB7/A194Gr2H |
A193GrB7/A194Gr2H |
09 |
Cover stud& nut |
A193GrB16/A194Gr4/7 |
A193GrB16/A194Gr4/7 |
A193GrB7/A194Gr2H |
A193 Gr B7/A194Gr2H |
08 |
Gasket |
SS304 |
SS304 |
SS304 |
SS316 |
07 |
Thurst ring |
A182 F5 |
A182 F22 |
A182 F304 |
A182 F316 |
06 |
Back up ring |
A182 F5 |
A182 F22 |
A182 F304 |
A182 F316 |
05 |
Yoke |
A217 Gr C5 |
A217 Gr C15 |
A351 Gr CF8 |
A351 Gr CF8M |
004 |
Hinge |
A217 Gr C5 |
A217 Gr C15 |
A351 Gr CF8 |
A351 Gr CF8M |
03 |
Cover |
A217 Gr C5 |
A217 Gr C15 |
A351 Gr CF8 |
A351 Gr CF8M |
02 |
Bonnet |
A217 Gr C5 |
A217 Gr C15 |
A351 Gr CF8 |
A351 Gr CF8M |
01 |
Body |
A216 Gr WCB |
A217 Gr C15 |
A351 Gr CF8 |
A351 Gr CF8M |
Higher sizes are with dashpot arrangement to control the movement of the disc order to avoid slammingandwater hammer. |
|
CLASS 600~2500 PRESSURE SEALING SWING CHECK valves |
Dimensions |
Class 600 |
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
L, L1 |
mm |
292 |
330 |
355 |
431 |
508 |
558 |
660 |
787 |
838 |
889 |
991 |
1092 |
1194 |
L1-SP |
mm |
178 |
216 |
245 |
304 |
381 |
457 |
584 |
711 |
812 |
889 |
991 |
1092 |
1194 |
H |
mm |
240 |
265 |
275 |
325 |
370 |
425 |
500 |
555 |
610 |
725 |
755 |
850 |
925 |
WT. (approx) |
Kg |
20 |
38 |
45 |
45 |
95 |
125 |
220 |
330 |
505 |
595 |
800 |
1150 |
1600 |
Dimensions |
Class 900 |
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
L, L1 |
mm |
368 |
419 |
381 |
457 |
559 |
609 |
736 |
838 |
965 |
1029 |
1130 |
1219 |
L1-SP |
mm |
368 |
254 |
305 |
355 |
432 |
508 |
660 |
787 |
914 |
991 |
1092 |
1219 |
H |
mm |
250 |
580 |
290 |
335 |
380 |
440 |
510 |
570 |
620 |
730 |
790 |
860 |
WT. (approx) |
Kg |
44 |
57 |
75 |
105 |
140 |
230 |
440 |
590 |
870 |
1085 |
1225 |
1700 |
Dimensions |
Class 1500 |
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
L, L1 |
mm |
368 |
419 |
470 |
546 |
673 |
705 |
832 |
991 |
1130 |
1257 |
1384 |
L1-SP |
mm |
216 |
254 |
305 |
406 |
483 |
559 |
711 |
864 |
991 |
1067 |
1194 |
H |
mm |
265 |
295 |
310 |
345 |
385 |
460 |
515 |
590 |
645 |
765 |
800 |
WT. (approx) |
Kg |
65 |
72 |
80 |
125 |
160 |
300 |
525 |
960 |
1130 |
1450 |
2100 |
Dimensions |
Class 2500 |
Size |
inch |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
L, L1 |
mm |
451 |
508 |
578 |
673 |
794 |
914 |
1022 |
1270 |
1422 |
L1-SP |
mm |
279 |
330 |
368 |
457 |
533 |
610 |
762 |
914 |
1014 |
H |
mm |
280 |
310 |
325 |
370 |
425 |
500 |
525 |
630 |
695 |
WT. (approx) |
Kg |
78 |
95 |
110 |
205 |
395 |
495 |
900 |
1300 |
1950 |
Gear operation suggested. Dimensions on request. Abbreviation: SP-Short pattern. |
