| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Material Of Seal Surface: |
Soft Sealed |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Household Usage |
Product Description

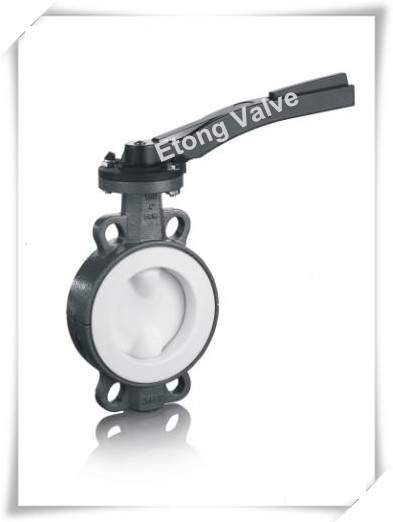

PTFE Lined Wafer Butterfly Valve
Brief introduction:
PTFE-lined wafer type butterfly valve, centric design, easy for installation with two-piece body, self-centering, one-piece disc/stem.
Technical Specification
-Nominal diameter: DN40~400mm
-Applicable Temperature: : -40° To +180° (depending on operation pressure)
-Nominal pressure: PN1.0MPa(PN1.6MPa for special version)
-Actuator type: Handwheel, gear box, pneumatic actuator
-Face to face: API609/EN558-1(DIN3202)/ISO 5752
-Top flange: ISO5211
|
Item Name of parts |
Material |
|
1 |
Body |
Ductile iron /Stainless steel/WCB |
|
2 |
Seat |
F4/RTFE/PFA |
|
3 |
Disc |
F4 /PFA/F46 |
Shanghai Etong Valve Co., Ltd. is located in the transport and information facilitated Sijing industrial Zone of Shanghai, nearing Shanghai Hongqiao Airport.
Etong has accumulated a wealth of information and experience in this field and enjoy a high reputation in dealing with both domestic and overseas trading. Our products line includes various kinds of pressure reducing valve, float control valve, pressure sustaining valve, butterfly valve etc.
