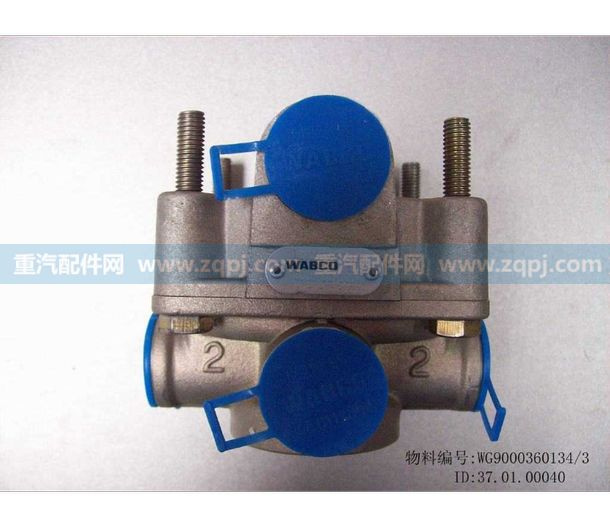

Relay Valve of Heavy Duty Truck (SINOTRUK)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
WG9000360134 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Size: |
Weight |
| Position: |
Front |
| Material: |
Aluminum |
| Type: |
Brake System |
| Certification: |
ISO9001 |
Product Description
Applicable models: sinotruk.
Applicability:The prince is special assembly - gold prince braking system
Steyr, steyr king dedicated assembly - brake system
HOWO series dedicated assembly - brake system
Howe jun - brake equipment.
Associated parts: brake hose, air cylinder, brake chamber.
Installation location: rear frame.
Principle: how it works: when on the brake pedal, brake valve's output pressure as the pressure in the working principle of the relay valve control input, in the control pressure, the inlet valve open, then the compressed air directly by the air cylinder through the air inlet into the brake chamber, rather than through the brake valve, brake chamber which greatly shortens the aeration pipe, accelerate the air chamber aeration process.When the foot pedal to loosen, the control pressure, after removal of diaphragm in the spring under the action of arch, down to close the inlet valve, exhaust valve open, then compressed air brake chamber by the core tube and hole to brake valve, and the brake valve vent discharge into the atmosphere.
Common faults: (a) the common breakdown of the rear wheel main brake doesn't work Root cause analysis (relay valve jammed in the upper limit position (common faults (2) the rear brake the Lord is not in contact for cause analysis (relay valve live he died in the lower limit position Common faults in the rear wheel (3) the main brake system of steam Cause analysis of relay valve exhaust valve leakage.
Gm:
Every ring (WG9100360134)
Every ring (199100360134).
Every ring (WG900360134)
