Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
Thread Position Of Valve Rod: |
Outside Gate Valve |
Seal Surface: |
Wedge Gate Valve |
Material: |
Cast Iron |
Connection Form: |
Flange |

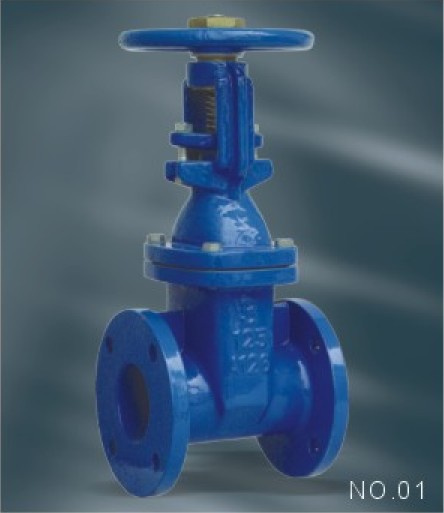

Product Description
Components
1. Body: Ductile iron
2. Disc: Ductile iron with NBR/EPDM/FPM
3. Bonnet: Ductile iron
4. Stem: Stainless steel
5. Gland: Ductile iron
6. Hand wheel: Ductile iron
Application
1. Face to face is according to ANSIB16.10
2. Flange drilled is according to ANSI B16.1/16.5
3. Class125 Flat face flange
Class150 Raised face flange
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
L |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
H |
285 |
343 |
390 |
452 |
533 |
602 |
813 |
935 |
1082 |
D |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
400 |
455 |
C |
178 |
178 |
203 |
254 |
254 |
305 |
356 |
405 |
457 |
