| Prod Model: |
DHWS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size Option: |
1/4" |
| Body Material: |
PA/ Plastic |
| Pressure: |
0-7bar |
| Seal: |
NBR |
| Media Temperature: |
-5 ~60 Degree Centigrade |
| Media: |
Gas, Water, Liquid |
| Order Leadtime: |
7-10 Days |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Application: |
Household Usage |
| Power Supply: |
AC /DC |
Product Description

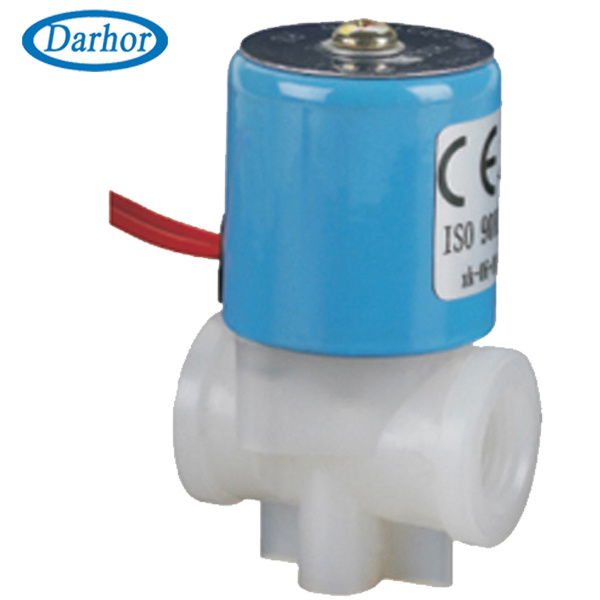

Direct acting, small plastic solenoid valve
2WAY NC/NO
Characteristic:
1. Direct acting miniature construction at low power consumption
2. Food class body material available for RO system, Washer, miller, etc
Medium: Air, Water, etc
Temperature:
NBR Seal: -10 to 80
EPDM Seal: -10 to 80
VITON Seal: -10 to 80
Pressure: DHWS1: 0 ~ 7 bar
Port Size: 1/4"
Port Thread: BSPP, BSPT, NPT,
Orifice (mm): DHWS1 2.5mm
Voltage:
DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils:
Y72B, 6VA (AC), 6W (DC), IP65, 100%ED
AB2B, 6VA (AC), 6W (DC), IP65, 100%ED
Material:
Body Nylon (food class), PP, POM
Seal -VITON, NBR, EPDM, Silicon Ruben
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
