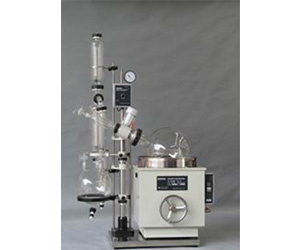

Rotary Evaporator (R5003KE)
| Price: |
US $ 1-5500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
R5003KE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Evaporator |
Product Description
EvaporatingFlask: 50L.
Recievingflask(ml): 20L.
Condenser: Triple.
HeatingBath: 9KW-100degree.
Speed(rpm): 3-110,
Dimensions: 1300*800*2200.
Rate Of Evaporation>9L/H.
BasicCollocationFollowing: SealingForProlongedUse, DigitalTemperature Controller. Frequency converter. PTFE Discharging Piston. No Spark Electric Control system. T Lifting Heating Bath, Vacuum Meter, Discharging lower mouth, Ball Mouth Receiving Flask, Digital Display For Speed, Low Noise, Device For Loosening flask, PTFE Sleeve. Spanner For Loosening The Bottle. Mouth For Testing Temperature, Continuous Receiveing.
Cold Trap. Automatical Pressure Valve. Optional: Flame-proof Motor
10L-50L rotary evaporator
| Model | R1002B | R2002B | R2003KE | R5003KE |
P
a
r
a
m
e
t
e
r
s | Evaporating flask(L) | 10 | 20 | 20 | 50 |
| Receiving flask(L) | 5 | 10 | 10 | 20 |
| Condenser | double | double | triple | triple |
| Condenser Surface(m2) | 0.57 | 1 | 1 | 1.5 |
| Heating bath | 3kw 100ºC(180ºC)±0.2 | 5kw 100ºC(180ºC)±0.2 | 5kw 100ºC(180ºC)±0.2 | 9kw 100ºC(180ºC)±0.2 |
| Bath Size Capacity | Dia35X25H 22L | Dia45X27H 40L | Dia45X27H 40L | Dia55X32H 70L |
| Speed(rpm) | 3-110 | 3-110 | 3-110 | 3-110 |
| Dimensions(mm) | 950X500X1800 | 1100X600X2100 | 1100X600X2100 | 1300X800X2200 |
| Rate of evaporation(H2O) | >3L/h | >5L/h | >5L/h | >9L/h |
| Power supply | 220V | 220V | 220V | 380V |
C
o
m
p
o
n
e
n
t
s
| PTFE Seal Assembly | Yes | Yes | Yes | Yes |
| PTFE Discharging Valve | Yes | Yes | Yes | Yes |
| Vacuum Meter | Yes | Yes | Yes | Yes |
| Throttle Valve for vacuum | Yes | Yes | Yes | Yes |
| Frequency Conversion Speed Controller | Yes | Yes | Yes | Yes |
| Continuous Feeding | Yes | Yes | Yes | Yes |
| Tandem type Continuous Receiving | No | No | Yes | Yes |
| Digital Display | Temp and Speed digital display |
| PTFE Sleeve | Yes | Yes | Yes | Yes |
| Cold Trap | NO | No | Yes | Yes |
| Thermometer neck of vapor | No | No | Yes | Yes |
| Bumping Tube | No | No | Yes | Yes |
| Options evaporating flask | 5L | 5L,10L | 5L,10L | 10L,20L |
| Ex-proof motor | Optional | Optional | Optional | Optional |
| Steam Heating | No | Optional | Optional | Optional |
| Flask Joint Spanner | Yes | Yes | Yes | Yes |
| Evaporating Flask Unloading handler | No | Optional | Optional | Optional |
| Safety Features | Over-Current Protection, No-spark Electric Control |
