Medium: Steam, air, liquid, heat oil
Medium temperature: -5 ~ 180 º C
Action by: Step direct-acting
Working Pressure: Normally closed: 0 ~ 10 kgf / cm2;
Body material: Brass (forging), flange: Brass (casting)
Piston seals, sealing material: PTFE (polytetrafluoroethylene)
Coil protection factor: IP54 steel coil
Special order:
Too hot or at room temperature media, you can buy Viton seals (Viton), the order indicated in V, which can reach a maximum temperature of the medium 150 º C;

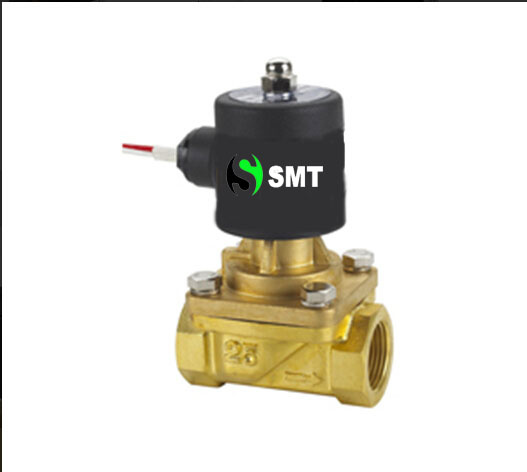

Type | RSPS-8 | RSPS-10 | RSPS-15 | RSPS-20 | RSPS-25 | RSPS-32 | RSPS-40 | RSPS-50 | RSPS-20F | RSPS-25F | RSPS-32F | RSPS-40F | RSPS-50F | RSPS-40CF | PSPS-50CF |
Orifice Size | G1/4" | G3/8" | G1/2" | G3/4" | G1" | G1¼" | G1½" | G2" | Copper flange | Copper flange | Copper flange | Copper flange | Copper flange | Cast iron flanges | Cast iron flanges |
Orifice | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 20 | 25 | 32 | 40 | 50 | 40 | 50 |
Cv value | 1.8 | 3.1 | 4.8 | 7.6 | 14 | 20 | 31 | 51 | 7.6 | 14 | 20 | 31 | 51 | 31 | 51 |
Length | mm | 50 | 50 | 68 | 81 | 92 | 96 | 118 | 150 | 107 | 123 | 135 | 155 | 190 | 150 | 185 |
High | mm | 98 | 98 | 132 | 148 | 160 | 183 | 191 | 210 | 165 | 195 | 222 | 235 | 250 | 230 | 250 |
Pressure AC | 0~16 | 0~16 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 | 0~10 |
Pressure DC | 0~16 | 0~16 | 0~8 | 0~8 | 0~8 | 0~5 | 0~5 | 0~5 | 0~8 | 0~8 | 0~5 | 0~5 | 0~5 | 0~5 | 0~5 |
Power | DN15~20mm AC 20VA DC 28W ;DN25mm AC 26VA DC 30W DN32~50mm AC 46VA DC 30W |
