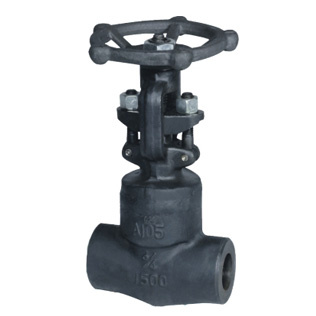

Screwed and Socket Welded Forged Steel Gate Valves
| Price: |
US $ 5-1500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SCRD/SW FS GATE VALVE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4" to 3" |
| Forged Material: |
Forged Carbon Steel,Stainless Steel,Alloy Steel |
| Class: |
800lb,1500lb,2500lb |
| Ending: |
Sw or NPT |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Water Industrial Usage |
| Material: |
Forged Steel |
| Connection Form: |
Threaded or Sw or Bw or Flanged |
Product Description
Screwed and SW Forged Gate Valves
Standard compliance:
1) Design and manufacture: API602, BS5352
2) Test and inspection: API598
3) Socket weld end: ANSI B16.11
4) Screwed end: ANSI B1.20.1
Specifications:
1) Size: 1/4" to 3"
2) Class: 150LB to 2500LB
3) Type: Forged Steel gate valves, ball valves, globe valves, swing check valves, lift check valve etc. Bolted bonneted or welded bonnet, reducer bore or full bore, Screwed end or SW end.
4) Material: A105, LF2, F304, F316, F304L, F316L, F11, F22, F51, F5, F9, MONEL, ALLOY 20 etc
5) Operation: Handwheel.
Forged Steel Gate Valve Class 800 / 1500 / 2500
Bolted bonnet or welded bonnet, Outside screw & yoke, Reduced port or full port
Description:
Design and manufacture: API 602 & ANSI B16.34
Socket weld end: ANSI B16.11
Screwed end: ANSI B1.20.1
Test and inspection: API 598
Size: 1/4" ~ 3"
Standard materials: A105, LF2, F5, F11, F22,F304, F304L, F316, F316L etc.
Standard materials of parts| No. | Parts | Materials |
| 1 | Body | A105 |
| 2 | Bonnet | A105 |
| 3 | Stem | A276-410 |
| 4 | Disc | A276-420 |
| 5 | Seat ring | A276-410 + STL |
| 6 | Bonnet bolt | A193-B7 |
| 7 | Gasket | 304 + Graphite |
| 8 | Gland | A276-410 |
| 9 | Packing | Graphite |
| 10 | Gland flange | WCB |
| 11 | Gland bolt | A276-410 |
| 12 | Gland bolt nut | A194-2H |
| 13 | Gland bolt pin | A276-410 |
| 14 | Sleeve | A276-410 |
| 15 | Sleeve washer | A276-410 |
| 16 | Handwheel | A197 |
| 17 | Nameplate | Aluminum |
| 18 | Handwheel nut | A108-1020 |
Dimensions (in mm & inch) and weight
Class 800| ND | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) | 65(2.1/2) | 80(3) |
| Dia. | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
|
| d | mm | 7 | 7 | 10 | 13.6 | 18 | 24 | 29 | 36.8 | 46.5 | 51 |
| L | mm | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 | 185 |
| H (Open) | mm | 166 | 166 | 166 | 169 | 193 | 230 | 246 | 283 | 330 | 359 |
| W | mm | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | 200 |
| Wt | B.B. | Kgs | 2.3 | 2.2 | 2.1 | 2.3 | 4 | 5.9 | 6.9 | 11.2 | 15.8 | 20 |
| W.B. | Kgs | 1.9 | 1.8 | 1.7 | 2.1 | 3.7 | 5.2 | 6.2 | 10.4 | 14.8 | |
Class 1500| Nominal | Reduced Port | mm(in) | 8(1/4) | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| diameter | Full Port | mm(in) | - | - | 10(3/8) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) |
| d | mm | 7 | 7 | 13.6 | 13.6 | 18 | 24 | 29 | 36.8 |
| L | mm | 111 | 111 | 111 | 111 | 114 | 120 | 140 | 162 |
| H (Open) | mm | 197 | 197 | 197 | 197 | 224 | 237 | 276 | 320 |
| W | mm | 125 | 125 | 125 | 125 | 160 | 160 | 180 | 180 |
| Weight | B.B. | Kgs | 4.8 | 4.7 | 4.6 | 4.6 | 6.3 | 8.7 | 12.1 | 17.2 |
| W.B. | Kgs | 4.1 | 4 | 3.9 | 3.9 | 5.8 | 7.8 | 11.2 | 16 |
Class 2500| Nominal diameter | mm(in) | 15(1/2) | 20(3/4) | 25(1) | 32(1.1/4) | 40(1.1/2) | 50(2) |
| d | mm | 13.6 | 13.6 | 18 | 25 | 29 | 36.8 |
| L | mm | 114 | 114 | 140 | 162 | 162 | 200 |
| H (Open) | mm | 218 | 218 | 259 | 320 | 320 | 350 |
| W | mm | 125 | 125 | 160 | 180 | 180 | 200 |
| Weight | Kgs | 7 | 7 | 14 | 23 | 22.5 | 28 |
Forged Steel Gate Valve Class 150-600
Bolted bonnet or welded bonnet
Reduced Port
Solid wedge gate
Flange ends or Butt-welding ends
| Technical Specification |
| Design Standard | ASME B16.34/AP1602 |
| Pressure-Temperatures Rating | ASME B16.34 |
| Face Face | ASME B16.10 |
| Flange Ends | ASME B16.5 |
| Butt welding Ends | ASME B16.25 |
| inspections &Test | AP1598 |
Standard materials of parts | NO | Part name | ASTM |
| Carbon Steel | Stainless Steel | Alloy Steel |
| 1 | Body | A105 | LF2/LF3 | A 182 F 304 | A 182 F 11/F22 |
| 2 | Seat | A 182 F 6a | A 182F 6a | A 182 F 304 | A 182 F 11/F22 |
| 3 | Wedge | A 182 F 6a | A 182F 6a | A 182 F 304 | A 182F 6a |
| 4 | Stem | A276-410 | A276-410 | A276-304 | A271-410 |
| 5 | Gasket | Graphite+304 |
| 6 | Sealing ring | Graphite |
| 7 | Yoke | A216-WCB | A216-WCB | A351 CF8 | A216-WCB |
| 8 | Bonnet | A105 | A350 LF2/LF3 | A 182 F 304 | A 182F 11/F22 |
| 9 | Bolt | A193 B7 | A 320 L 7 | A193 B8 | A193 B16 |
| 10 | Packing | Graphite |
| 11 | Stem Bushing | A276-410 | A276-410 | A276-304 | A276-410 |
| 12 | Gland | A216-WCB | A261-WCB | A351 CF8 | A216-WCB |
| 13 | Eye blot | A193 B7 | A 320 L 7 | A193 B8 | A193 B7 |
| 14 | Stem nut | A276-410 |
| 15 | Hand wheel | A197or A47-32510 |
Dimension List Unit: mm | Pressure | Size | Dimension | Wt(kg) |
| mm | in | d | L-RF | L-BW | L-RTJ | H | W |
| CLASS150 | 15 | 1/2 | 10 | 108 | 108 | 119 | 162 | 100 | 3 |
| 20 | 3/4 | 12.7 | 117 | 117 | 130 | 162 | 100 | 3.5 |
| 25 | 1 | 19.1 | 127 | 127 | 140 | 211 | 125 | 5.5 |
| 32 | 1-1/4 | 24 | 140 | 140 | 153 | 238 | 125 | 6.8 |
| 40 | 1-1/2 | 31.8 | 165 | 165 | 178 | 257 | 160 | 10.4 |
| 50 | 2 | 38.1 | 178 | 216 | 190 | 282 | 180 | 14.4 |
| 65 | 2-1/2 | 48.5 | 190 | 241 | 203 | 357 | 200 | 24.5 |
| CLASS300 | 15 | 1/2 | 10 | 140 | 140 | 151 | 162 | 100 | 3.6 |
| 20 | 3/4 | 12.7 | 152 | 152 | 165 | 162 | 100 | 4.9 |
| 25 | 1 | 19.1 | 165 | 165 | 178 | 211 | 125 | 7 |
| 32 | 1-1/4 | 24 | 178 | 178 | 191 | 238 | 125 | 9.4 |
| 40 | 1-1/2 | 31.8 | 190 | 190 | 203 | 257 | 160 | 13.3 |
| 50 | 2 | 38.1 | 216 | 216 | 232 | 282 | 180 | 18 |
| 65 | 2-1/2 | 48.5 | 241 | 241 | 257 | 357 | 200 | 26.2 |
| CLASS600 | 15 | 1/2 | 10 | 165 | 165 | 165 | 162 | 100 | 4.2 |
| 20 | 3/4 | 12.7 | 190 | 190 | 190 | 162 | 100 | 5.8 |
| 25 | 1 | 19.1 | 216 | 216 | 216 | 211 | 125 | 8.8 |
| 32 | 1-1/4 | 24 | 229 | 229 | 229 | 238 | 125 | 12.1 |
| 40 | 1-1/2 | 31.8 | 241 | 241 | 241 | 257 | 160 | 15.6 |
| 50 | 2 | 38.1 | 292 | 292 | 295 | 282 | 180 | 19.5 |
| 65 | 2-1/2 | 48.5 | 330 | 330 | 333 | 357 | 200 | 32 |
Forged Steel Gate Valve Class 900-1500
Bolted bonnet/welded bonnet/pressure sealed bonnet
Full port
Solid wedge gate
Flange ends/Butt-welding ends
| Technical Specification |
| Technical Specification | ASME/API |
| Design Standard | ASME B16.34/AP1600 |
| Pressure-Temperatures Rating | ASME B16.34 |
| Face Face | ASME B16.10 |
| Flange Ends | ASME B16.5 |
| Butt welding Ends | ASME B16.25 |
| Inspections &Test | AP1598 |
Standard materials of parts | NO | Part name | ASTM |
| Carbon Steel | Stainless Steel | Alloy Steel |
| 1 | Body | A105 | LF2/F3 | A 182 F 304 | A 182 F 11/F22 |
| 2 | Seat | A 182 F 6a | A 182F 6a | A 182 F 304 | A 182 F 11/F22 |
| 3 | Wedge | A 182 F 6a | A 182F 6a | A 182 F 304 | A 182F 6a |
| 4 | Stem | A276-410 | A276-410 | A276-304 | A271-410 |
| 5 | Gasket | Graphite+304 |
| 6 | Sealing ring | Graphite |
| 7 | Yoke | A216-WCB | A216-WCB | A351 CF8 | A216-WCB |
| 8 | Bonnet | A105 | A350 LF2/LF3 | A 182 F 304 | A 182F 11/F22 |
| 9 | Bolt | A193 B7 | A 320 L 7 | A193 B8 | A193 B16 |
| 10 | Packing | Graphite |
| 11 | Stem Bushing | A276-410 | A276-410 | A276-304 | A276-410 |
| 12 | Gland | A216-WCB | A261-WCB | A351 CF8 | A216-WCB |
| 13 | Eye blot | A193 B7 | A 320 L 7 | A193 B8 | A193 B7 |
| 14 | Stem nut | A276-410 |
| 15 | Hand wheel | A197or A47-32510 |
Dimension List Unit: mm | Pressure | Size | Dimension | Wt.(kg) |
| mm | in | D | L-RF | L-BW | L-RTJ | H | W |
| BB/WB | PB | BB/WB | PB |
| CLASS900/ | 15 | 1/2 | 13 | 216 | 216 | 216 | 197 | 321 | 125 | 7.2 | 17 |
| CLASS1500 | 20 | 3/4 | 18 | 229 | 229 | 229 | 211 | 321 | 125 | 11.5 | 16.7 |
| 25 | 1 | 24 | 254 | 254 | 254 | 238 | 321 | 160 | 15.6 | 21.3 |
| 32 | 1-1/4 | 29 | 279 | 279 | 279 | 257 | 380 | 160 | 16.2 | 24.5 |
| 40 | 1-1/2 | 36.5 | 305 | 305 | 305 | 276 | 414 | 180 | 22.6 | 28.7 |
| 50 | 2 | 46.5 | 368 | 368 | 371 | 320 | 502 | 240 | 28.2 | 45.8 |
