| Prod Model: |
ZCQ-11BK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3/8~2 |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
Product Description

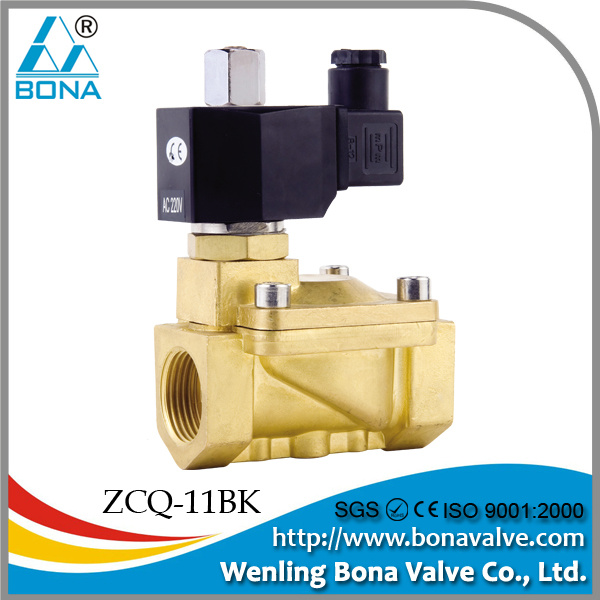

Pilot operated, normally open
Solenoid valve with brass body, heavy-duty, pneumatic component, media of water, air in general.
Name: Pneumatic solenoid valve, hot water solenoid valve, air solenoid valve, liquid solenoid valve, brass solenoid valve, etc.
Specification:
1)Joint Pipe Bore: Female 3/8"-2"
2)Working pressure: 0.5-8bar
3)Max. Pressure Resistance: 8bar
4)Operating Temperature: 80/120 degree C
5)Material of Body: Brass
6)Material of Seal Ring: NBR, EPDM, VITON
| Port Size: | Female G 3/8"; 1/2"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2" (NPT upon request) |
| Port NO.: | 2/2 way |
| Body material: | Brass |
| On-off state: | Normally open |
| Seal ring material: | NBR, EPDM, VITON |
| Max valve pressure: | 0.5-8 bar |
| Max Media Temperature: | 80 ºC / 120 ºC |
| Voltage available: | 12VAC; 12VDC; 24VAC; 24VDC; 110/120VAC; 220/230VAC |
| Protection Class: | IP 65 |
We have many years professional manufacture experience in designing and producing solenoid valves, other fluid control products and their components. Now we have several patents. Our product passed CE of TUV, SGS.
Our main product are solenoid valves for water, solenoid valves for steam, solenoid valve for air, stainless steel float ball switch and other brass products. Widely be used in automatic application of welding, irrigation, ironing, food process, inductive sanitary, water auto supply, home appliance industry.
Quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products are exported all over the world.
Welcome to choose our varied products. We have powerful technical support, steady quality and good service. We'd very like to have cooperation with you in a long term relationship.
