| Prod Model: |
U401-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificates: |
CE |
| Power Supply: |
DC Solenoid Valve |
| Connection Form: |
Thread |
| Type: |
Distribution of Direct Acting |
| Valve Structure: |
Parts of Fuel Dispenser |

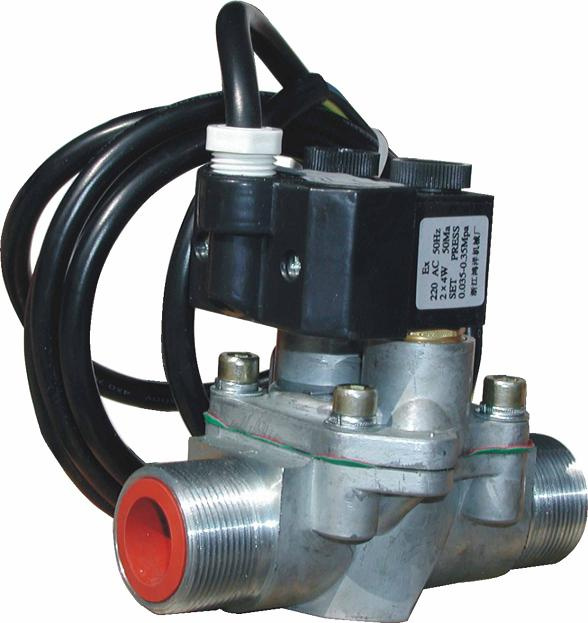

Product Description
The flow control valve has been tested and granted Ex approval. The Ex-approval is EX m II T4. Ex certificate number is CE021037.
Materials:
Body: Die cast aluminum alloy
Technical Specifications:
Power: AC220 V, 2× 4W
Current Consumption: Big flow valve 18mA, small flow valve 18mA
Allow flow rate: 65L/min, big flow rate: 50L/min, small flow rate: 5L/min.
Working pressure: 0.035-0.035MPa
Environmental Condition: -40~+70
Features:
A high advantage in reliability and adaptability.
Housing: Die cast aluminum alloy.
Dual flow control valves have three grades of big flow, small flow and close.
The fuel resistant cable can be customized regarding length.
100% Factory Tested.
Wiring:
Color Link
Brown communal terminal
Black big flow rate
White small flow rate
Yellow/green ground
Package:
Product ID Weight Dimension
U401-A 2.1kg/case of 130 × 116× 80mm/case of 1
Ordering Specifications:
Product ID Allow flow rate
U401-A 65L/min.
