| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |

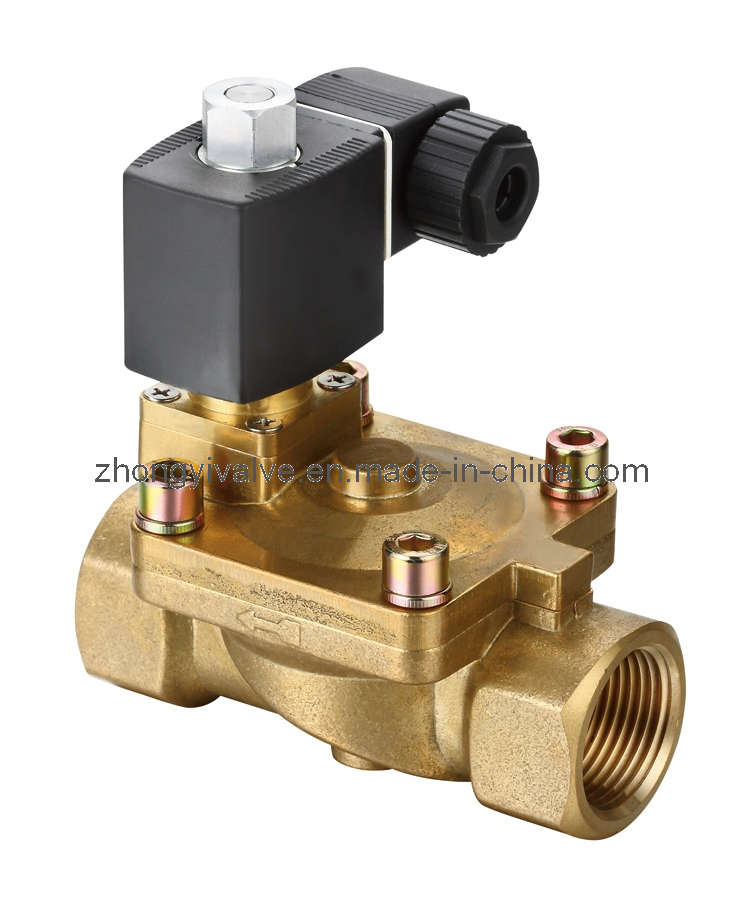

Product Description
Operated way: Pilot-operated
Control way: Nc(standard)
Pipe size: G1/4~g1(standard)
Dn: Dn13~25mm
Pn: The highest pn: 5.0mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80 degree centigrade
Circumstance temperature: -10~+50degree centigrade material: Brass
Sealing material: PTFE or NBR
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
|
Standard: |
|
Item no. |
DN
(mm) |
PIPE SIZE
(G) |
PN
(MPa) |
medium temperature (degree centigrade) |
|
5241008 |
15 |
1/4 |
0.05~5.0 |
-10~+80 |
|
5241010 |
15 |
3/8 |
0.05~5.0 |
|
5241015 |
15 |
1/2 |
0.05~5.0 |
|
5241020 |
15 |
3/4 |
0.05~5.0 |
|
5241020-20 |
23 |
3/4 |
0.05~3.5 |
|
5241025 |
23 |
1 |
0.05~3.5 |
