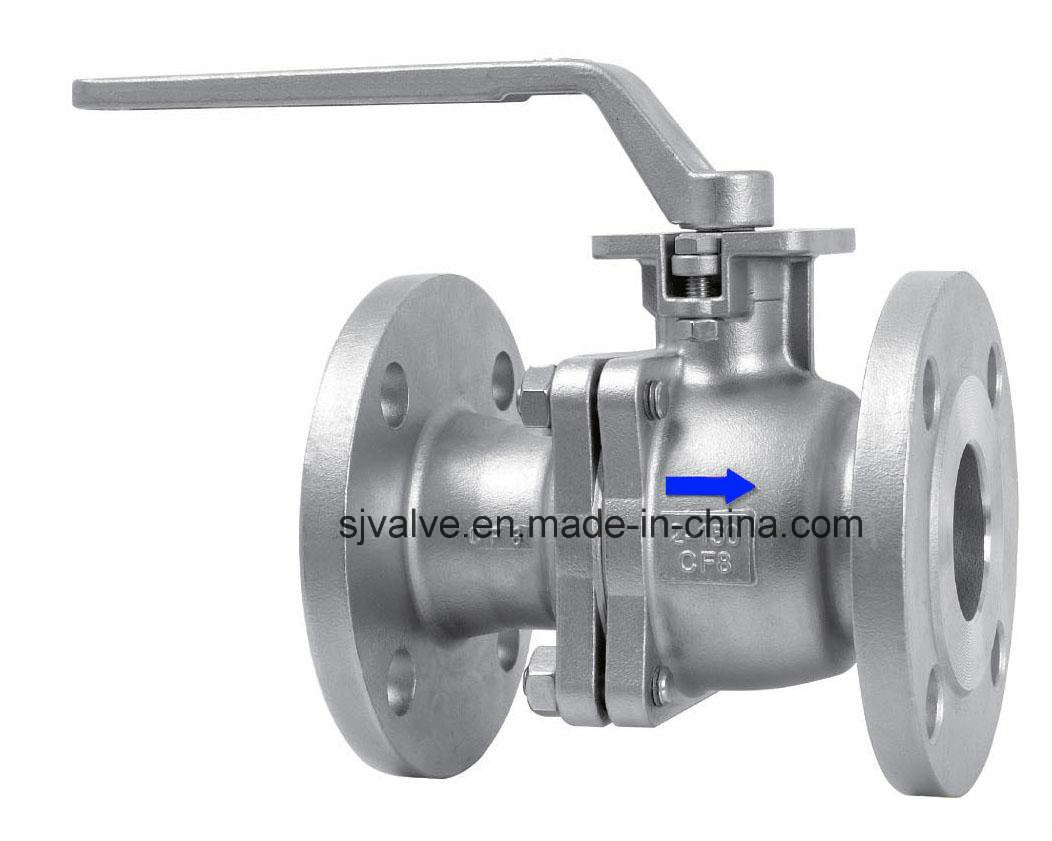

Stainless Steel 2 PC Flange Ball Valve
Price: |
US $ 14.7-15/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Set |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
Q41F-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection: |
Flange |
Size: |
1/2"--6" |
Certification: |
CE,ISO |
Connection Form: |
Flange |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Application: |
Household Usage |
Material: |
Stainless Steel or Wcb |
Product Description
Feature of product |
name | Stainless steel 2pc flange ball valve |
Design | full port |
Material of construction | investment casting |
Material | SS304/SS316/SS201/WCB |
Working pressure | 1000WOG/PN63 |
Size range | 1/2"--6" |
End Connection | flange |
Mode of operation | Manual |
Options | with locking device |

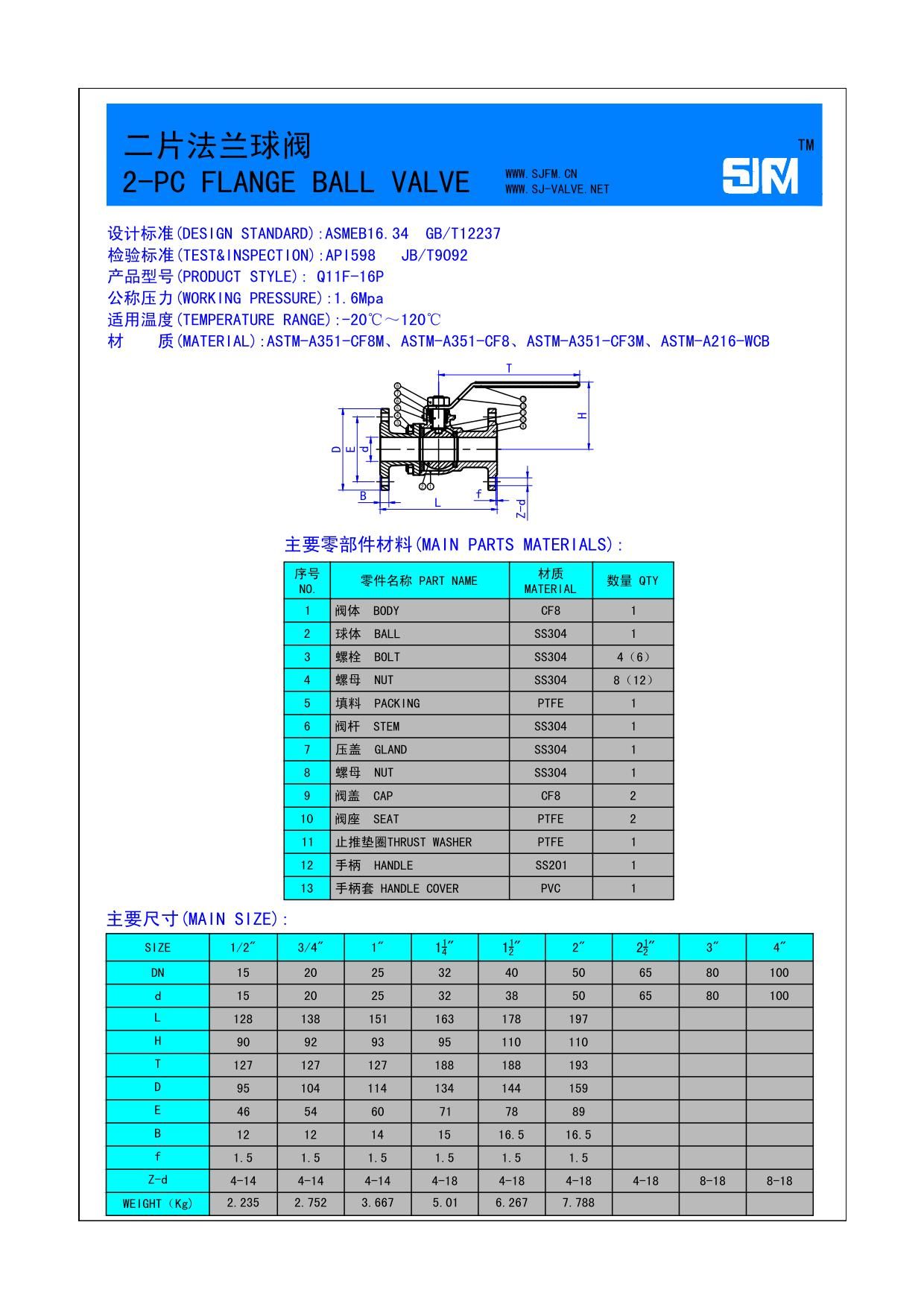

Specification |
Nominal pressure | PN1.6 ,2.5,4.0,6.4 MPa |
Strength testing pressure | PT:2.4,3.8,6.0,9.6M.pa |
Seat testing pressure(hight pressure) | 1.8,2.8,4.4,7.1Mpa |
Applicable media | Q41F-1C water oil gas /Q41F-1P Nitric acid /Q41F-1FR Acetic acid |
Applicable temperature | -20ºCto200ºC |
Product standard | ASME B16.34 |
Wall thickness standard | ASME B16.34 GB12224 |
|
Inspection standard | API598 EN12266 |
Product certification | PED 97/23/EC(CE2138) ISO900 |
1,quality is superiorand price is reasonable
2,well done !perfect after service
3, monthly output: 400, 000.00 set/month
4, Payment term: L/C or T/T
5, Delivery time: 30-45 days after received the deposit.
6, Package detail: Inner CTN, ourside ply-wooden case
choose me1, We are according to the requirements of customer to print logo
2, our products are well received both at home and abroad
3,Please be assured the quality is passed the CE certification
4,If you need we will meet all the demands
5. We are manufacturer
6,We will be answer within 24 hours, glad to contact with us if you have any problems, We are looking forward to cooperating with you.
