Stainless Steel Anti-Vacuum Valve for Fermentor
| Price: |
US $ 210/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
FK45X-1.5P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size:Dn50-Dn150: |
Norminal Pressure:0.05-0.3MPa |
| Working Temperature:-10-80 Degree: |
Material:SUS304/316L |
Product Description

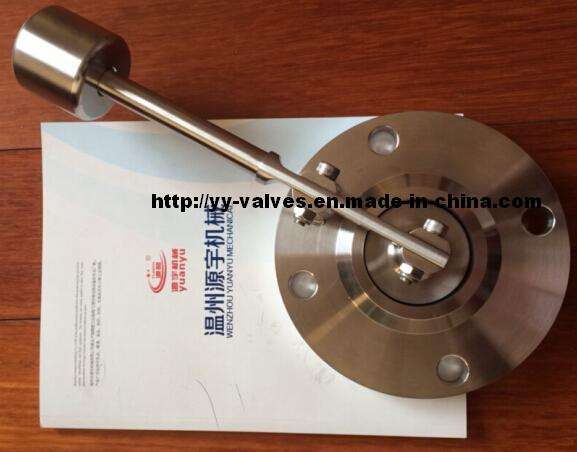

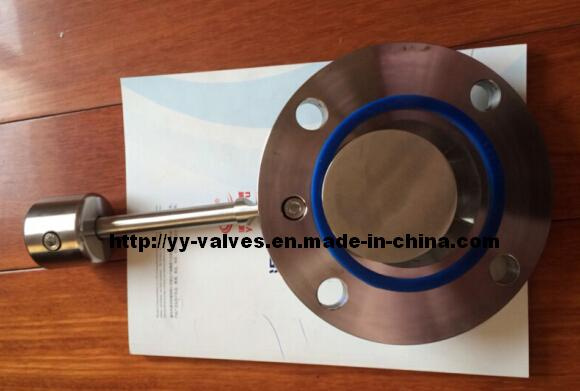

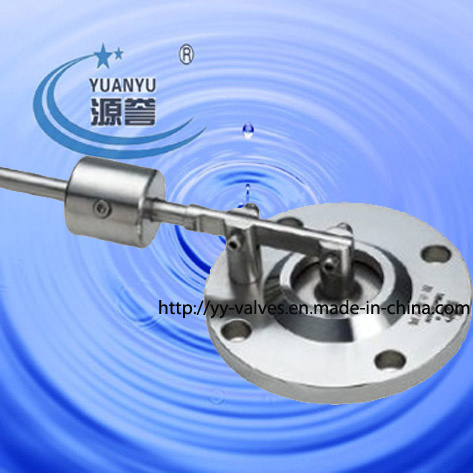

Anti-Vacuum Valve For Fermentor
Norminal pipe size: DN50-DN150&2"-6"
Working vacuum degree: 50-300mmHg
Working temperature: -10-80 degree
Material: SUS304/316L
Breath-in capacity: 300m/h
Application
The anti vacuum valve is used for minimizing the risk of implosion of tanks exposed to vacuum e. G. During emptying, cool rinsing after hot-cleaning (max. 85° ) or caustic cleaning in a CO2 atmosphere. The anti vacuum valve can be applied on any closed tank.
Design
The advantages of an integrated anti vacuum valve are lower initial costs, superior hygiene and smaller area required for seat valve. The size and setting of the anti vacuum valve is based on the tank design data, cleaning procedure and process requirements. The anti vacuum valve is produced in a sanitary and robust design.
Specifications
All metallic parts: SUS 304 or SUS 316L
O-ring seal: Q, EPDM, NBR
All other parts: Non-toxic food grade materials
The benefits of the anti vacuum valve are:
Valve seat design ensures operational reliability
Sensitive vacuum set points for precise operation
Fully cleanable with CIP system
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
