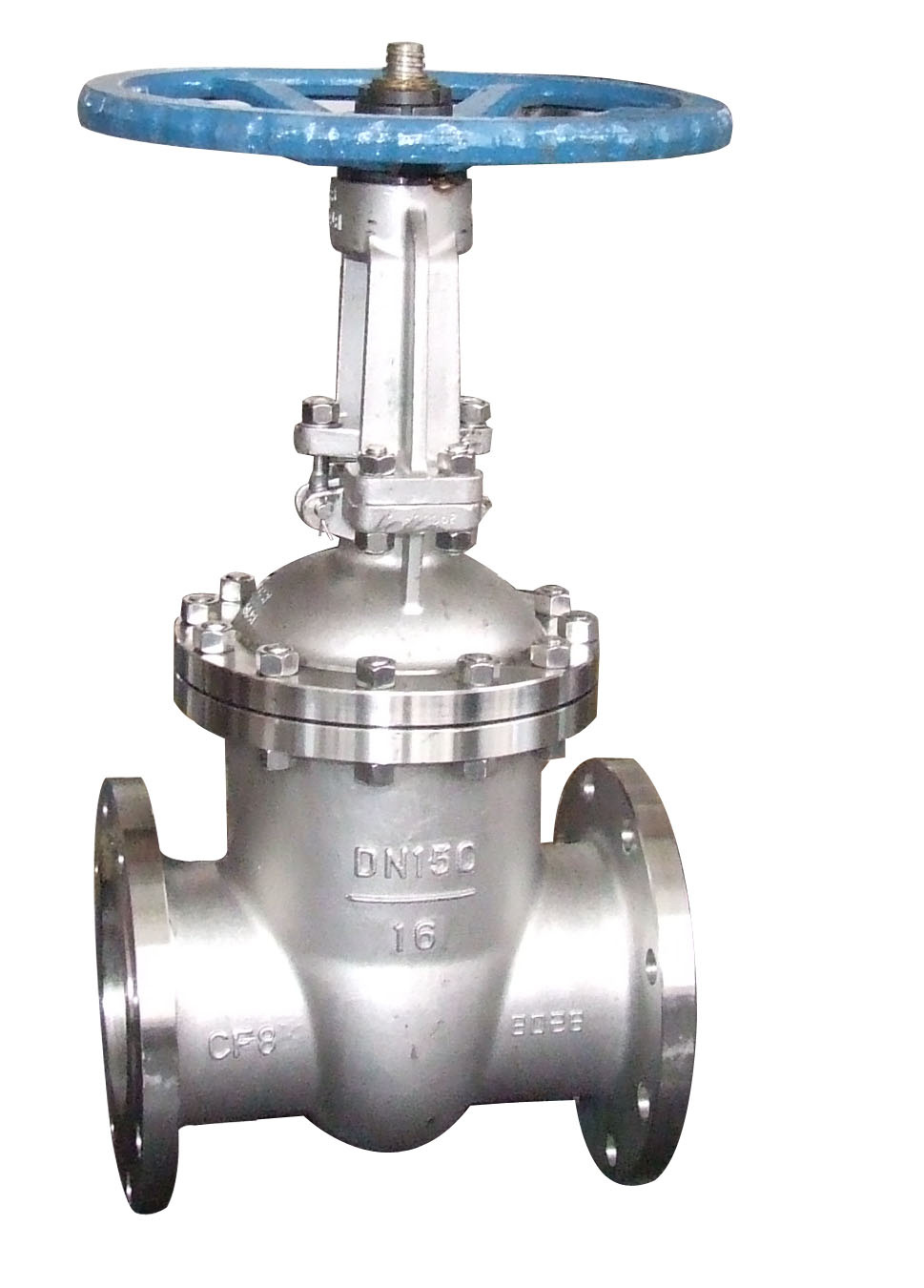

Stainless Steel Gate Valve
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Carbon Steel |
| Connection Form: |
Flange |
Product Description
Stainless Steel Gate Valve
1. Stainless Steel Gate Valve has reasonable structure, reliable seal, doule durable matal seal design to assure no leakage and safer factory facility.
2. The seal surface of Stainless Steel Gate Valve is buildup welding with Co hard alloy. It has characteristics of good abrasion resistance, good corrison resisitance, god anti-scuffing roperties and long life.
3. The stem of Stainless Steel Gate Valve has good abrasion resistance and good corrosion resistance. It is treated by heat and nitriding.
4. Stem shows the lifting position visually.
5. The part material, flange and butt weld and dimension may be selected according to current operating condition and users' requirement, so that meeting the requrements of various engineering.
Specification:
1) Size: NPS 1/2-36"/DN15-900
2) Pressure: Class 150-2500LBS/PN16-PN420
3) Test standard: BS 6755
4) Main material: Stainless Steel, Cast steel, Cast Iron
5) Face to face standard: DIN3202, ASME B1.20
|
NO. |
Part name |
Material |
|
1 |
Body |
GS-C25, CF8, CF3 |
|
2 |
Disc |
1Cr13, F304, F316 |
|
3 |
Pin |
25#, F304, F316 |
|
4 |
Stem |
1Cr13, F304, F316 |
|
5 |
Middle Gasket |
1Cr13, F304, F316 |
|
6 |
Cover |
GS-C25, CF8, CF3 |
|
7 |
Stem |
1Cr13, F304, F316 |
|
8 |
Bolt |
ASTMA193 2H, A193-8, A193-8M |
|
9 |
Nuts |
ASTMA193 B7, A193-B8, A193-B8M |
|
10 |
Yoke Net |
2CuZn25A116Fe3Mn2 |
|
11 |
Hand Wheel |
Carbon Steel |
|
12 |
Nuts |
ASTMA193 7, A193-8, A193-8M |
|
13 |
Gasket |
1Cr13, F304, F316 |
|
14 |
Gland |
ASTMA193 B7, A193-B8, A193-B8M |
|
15 |
Packing |
Flexible graphite+304 Flexible graphite+304, PTFE |
|
16 |
Bolt |
ASTMA193 B7, A193-B8, A193-B8M |
|
17 |
Disc Cover |
GS-C25, CF8, CF3 |
TECHNSPERT is your Technology Expert of industrial valves and pipeline accessories.
At TECHNSPERT, you will find an extensive range of industrial valves, fittings, pipes, flanges, gasket, fasteners and other spare parts for oil, gas, refinery, water treatment and industrial applications, with more than 80 products available in over 600 sizes and 30 materials.
The company mainly manufactures the valves according to ANSI, API, MSS, JIS, DIN, BS, NF and Chinese GB standards. Our main Manufacturing and Supplying Capability Covering Gate Valve, Ball Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve, Plug Valve, Strainer etc. Approved by ISO9001: 2008, API600, API6D, API6FA and CE/PED. The products are widely used in the field of petroleum, chemical, metallurgical, power, fuel gas, city pipeline networks. The products have been exported to USA, Canada, Germany, Peru, Jordan, Kenya and other countries, and has set up the office in Manhattan, New York. With advanced technology and reliable quality, our products have gained great reputation all over the world...
With a wide range of valves from stock or on site at the factory, we are well placed to meet delivery times expected in today's commercial climate. Today, by combining stocks of various of valves, with indepth technical expertise in their specification and use, we are relied upon, as leading valve suppliers, to source and modify valves that precisely meet our customers requirements and deadlines.
TECHNSPERT is a company on the move, ever growing and expanding. By working with TECHNSPERT our customers join in a partnership with a family of factories who bring traditional values of service and quality into a technological combination. If you have any questions or would like more information, please feel free to contact us.
