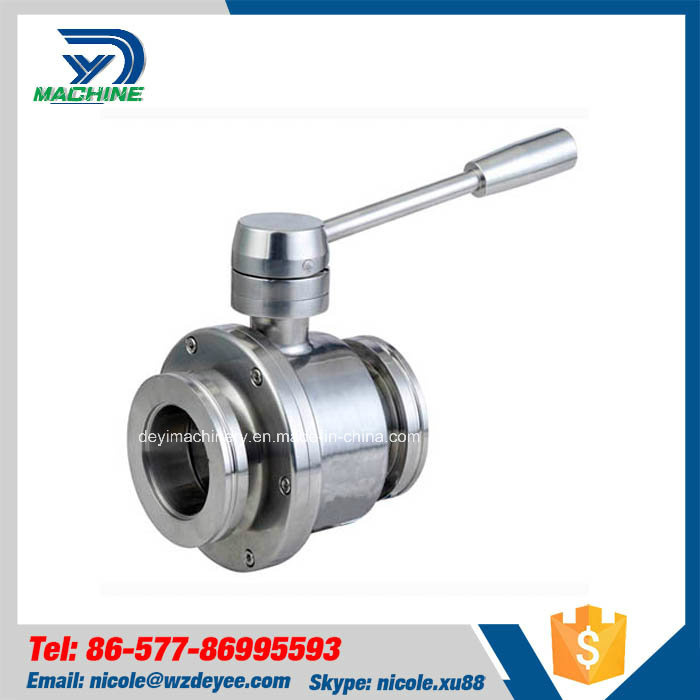

Stainless Steel Sanitary Vacuum Ball Valve (DY-V220)
| Price: |
US $ 10-11/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DY-V220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn25-100 & 1"-4" |
| Available Standard: |
ISO, DIN, 3A,SMS etc |
| Connection: |
Welded, Clamped, Threaded, Flanged |
| Working Principal: |
Manual Operation or Driving Device Operation |
| Body Construction: |
3-Piece Precision Cast Body |
| Flow Pattern: |
Straight |
| Seat Material: |
PTFE, PCTFE, Peek or Upon Your Request |
| Working Pressure: |
8bar,0.08MPa |
| Temperature Range: |
-20degree Celsius~135degree Celsius |
| Export Markets: |
Global |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Flexible Ball Valve |
| Type: |
Flexible Ball Valve |
| Application: |
Household Usage |
| Connection Form: |
Clamp |
| Nominal Pressure: |
0~10bar ,0~0.1MPa |
Product Description
Products Name:
Stainless Steel Sanitary Vacuum Ball Valve(DY-V220)
Sanitary Stainless Steel Ball Valves is widely applied to pipeline and equipment control.It is widely used in brewing industry.
Techical Datas
Material | AISI304 AISI316L |
| Specification | DN25-100 & 1"-4" |
| Standard | ISO, DIN, 3A,SMS etc |
| Connection | Welded, Clamped, Threaded, Flanged |
| Working Principal | manual operation or driving device operation |
| Flow pattern | straight |
| Seat material | PTFE, PCTFE, PEEK or upon your request |
| Orifice size | 2mm to 4.8mm |
| Body construction | 3-piece precision cast body |
| Temperature | -20degree celsius~135degree celsius |
