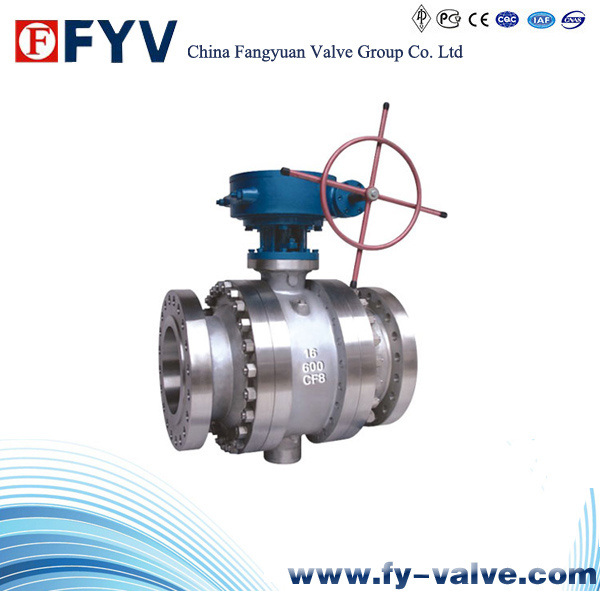

Stainless Steel Trunnion Ball Valve

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	2"~56"
Connection Form:	Flange
Channel:	Straight Through Type
Structure:	Floating Ball Valve
Type:	Floating Ball Valve
Material:	Stainless Steel
Application:	Household Usage

Product Description

Trunnion Ball Valve
Size: 2"~36"
ANSI Class 150~2500
Material: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
A217 WC6/WC9/C5/C12, A352LCA/LCB/LCC/LC1, A105, A350 LF2/LF1, EN12516 1.0619, 1.4408,
1.44011.4301, 1.4304, 1.4404, 1.4021, 1.4571, 1.4541, 1.4462 etc.
Design Standard: API 608, API 6D, BS 5351
FACE TO FACE Standard: ASME B16.10, API 6D
End Connection Standard: ASME B16.5, ASME B16.47, ASME B16.25
Test Standard: API 598, API 6D, BS 6755


Main Feature
Urgent grease injection device
According to customer s' requirement, the trunnion ball valves made by our company are provided with devices for urgent grease injection, which are on both the stem and seat for the trunnion ball valves of DN >150mm (NPS), and in the body cavity for the valve of DN < 125mm. When the O ring of stem or the body seat ring is damaged due to accident, the medium leakage between body and stem can be prevented by injecting the sealing grease through the device.
Double-block and bleed functions
In general, our company's trunnion ball valve features the front ball sealing design structure. Each seat of the ball valve can separately cut off the medium at both inlet and outlet of the valve to realize double-block functions. When the ball valve is closed, body cavity and two of the body ends can be blocked with each other even if both the inlet and outlet are under pressure, when the medium left in the body cavity might be bled through the relief valve.
Fire safe design
With the valve heated in a fire application, the non-metal material parts such as seat sealing ring of PTFE, O ring for the stem, and sealing gasket for body and bonnet, might be damaged due to high temperature. Our company's special design of auxiliary metal to metal or the graphite seal is provited fo rthe trunnion ball valve to effectively prevent both internal and external leakage of the valve. As required by customers, our company's fire safe design for the trunnion ball valve meets the requirement of API 607, API 6Fa, BS 6755 and JB/T 6899.
Self-relief in the body cavity
As the liquid medium left in the body cavity gasifies due to increased temperature, the pressure in the body cavity becomes abnormally higher, when the medium itself in the cavity would propel the seat and self-relieves the pressure to ensure the safety of valve.
