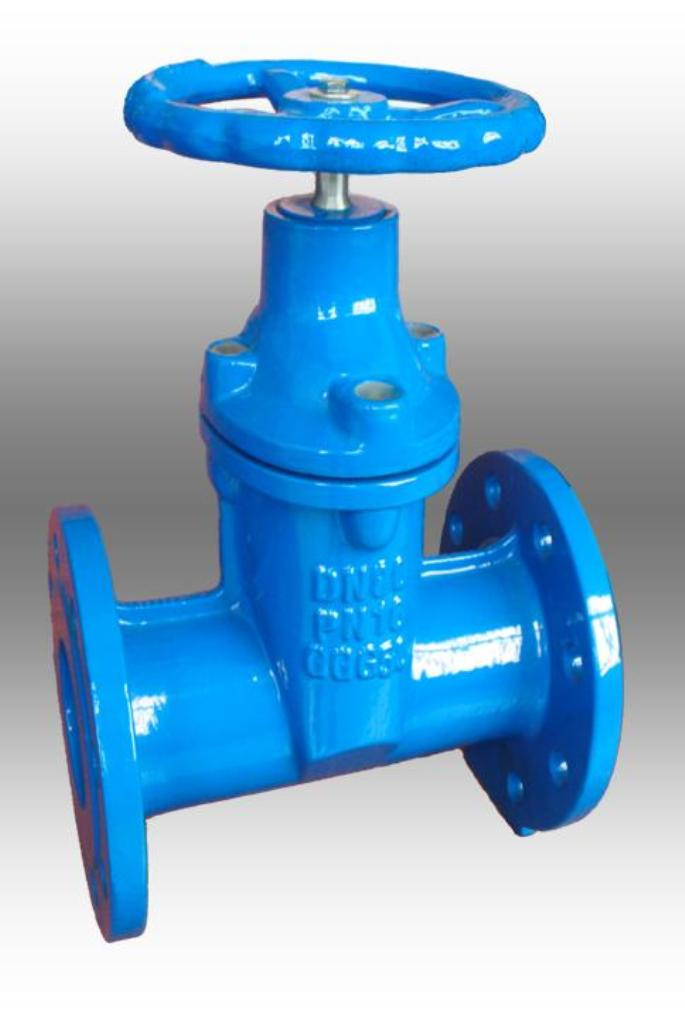

DIN3352-F4/F5 cast iron/ductile iron gate valve, flanged end with non-rising stem, PN10/PN16, resilient seated.
Material
Body: Cast iron/Ductile iron
Bonnet: Cast iron/Ductile iron
Wedge: Cast iron/Ductile iron with NBR/EPDM
Stem: Stainless steel/Brass
Bolt & Nut: Stainless steel/Steel with zinc
Design
Face to face is according to ANSI B16.01
Flange drilled is according to ANSIB16.1/ANSIB16.5
Test
Working pressure: PN10 PN16
Shell pressure: PN15 PN24
Seat pressure: PN11 PN17.6
Huayi Valve is specializing the manufacturing of iron valves and fittings. We are certified as an ISO9001 company with CE and WRAS certifications.
Our factory occupies more than 20, 000m2 of factory space departmentalized into machining, coating, assembly, testing and packing areas. An export oriented manufacturer, HuaYi traces a long history in valves manufacturing, and supplying OEM valves plus fittings globally for more than 15 years. With strict commitment to quality, HuaYi maintains a strong technical and quality control team and adopting technically advanced techniques, machineries and equipments in production.
Our customers include Flowncon, Tecofi, Aeon, Bimex, Legend and many others. Currently, HuaYi is bringing new brand - AVA to the marketplace. We are seriously looking for distributors and partners.
