Steam Pressure Reducing Valve (GARP-1h)

Steam Pressure Reducing Valve (GARP-1h)
Price: US $ 1/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: GARP-1H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No: Garp-1h
Size: 1/2"-20"
Category: Pressure Reducing Valve
Structure: Piston Type
Connecting Type: Flange
Material: C.S/S.S
Medium: Steam
Working Temperature: Below 425 Deg C
Usage: Pressure Reducing

Product Description

Product: GARP-1H steam pressure regulating valve.
Pressure Rating: 1.6- 16.0Mpa
Specification: DN15-500
Material: Steel, CF8
Standard flanges: DIN, ANSI, JIS;

Structural Characteristic&purpose.

This series reducing valve is pilot piston type reducing valve, mainly composed of main valve and pilot valve. The main valve consists of valve seat, main valve disc, piston, cylinder sleeve, and spring. The piston valve consists of valve seat, valve flap, membrane, spring and adjusting spring. The product made big improvement on the basis of normal pressure reducing valve, enlarge the piston area, change the throttle structure, change the sealing manner, improve the pilot structure and manner of adjusting spring, thus to improve the performance of the product in aspects of sensitivity, flow, and service life. The product is mainly applied on steam piping, to reduce and regulate the pressure.

Main Technical Parameters&Indexes Of Performance.

Nominal pressurePN1.6MpaPN2.5MpaPN4.0MpaPN6.4MpaPN10.0MpaPN16.0Mpa
Tested pressure of shell2.4Mpa3.75Mpa6.0Mpa9.6Mpa15.0Mpa24.0Mpa
Sealing test pressure1.6Mpa2.5Mpa4.0Mpa6.4Mpa10.0Mpa16.0Mpa
Maximum upstream pressure1.6Mpa2.5Mpa4.0Mpa6.4Mpa10.0Mpa16.0Mpa
Pressure range of outlet0.04-1.0Mpa0.05-1.6Mpa0.08-2.5Mpa0.2-3.5Mpa0.5-3.5Mpa0.5-4.5Mpa
Minimum differential pressure0.07Mpa0.1Mpa0.15Mpa0.3Mpa0.5Mpa0.8Mpa
MediumSteam
Operating temperature425°C.
*the shell test does not include membrane and top cover.

Material Of Main Component.

Name of componentMaterial of component
Valve body, valve cover, seat coverWCB
Valve seat, valve flap2Cr13
Cylinder sleeve, PistonAmpco
MembranePH15-7Mo
Piston ringpolyphenyl
Pilot valve seat, pilot valve rod2Cr13
Spring of main valve50CrVA
Main spring of pilot valve50CrVA
Adjusting spring60Si2Mn

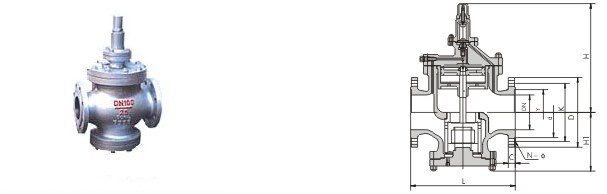

Connecting Dimension.

DNexternal dimension

LHH1

1.6/2.5Mpa4.0Mpa

1516018026585
2016018026585
2518020028095
3220022028095
40220240290105
50250270300130
65280300315145
80310330330170
100350/320380405200
125400 /380450450225
150450 /420500485265
200500 /540550570290
250650640325
300800740360
350850810395
400900950430
5009501080500
DNexternal dimension
LHH1
6.4Mpa10.0/16.0Mpa
15180180280100
20180200280100
25200220300115
32220230300115
40240240315130
50270300340135
65300340355150
80330360370175
100380450205
125450510235
150500555275
200550640300
250650720335
300800830375
350850880410
4009001020445
500950
1080515
