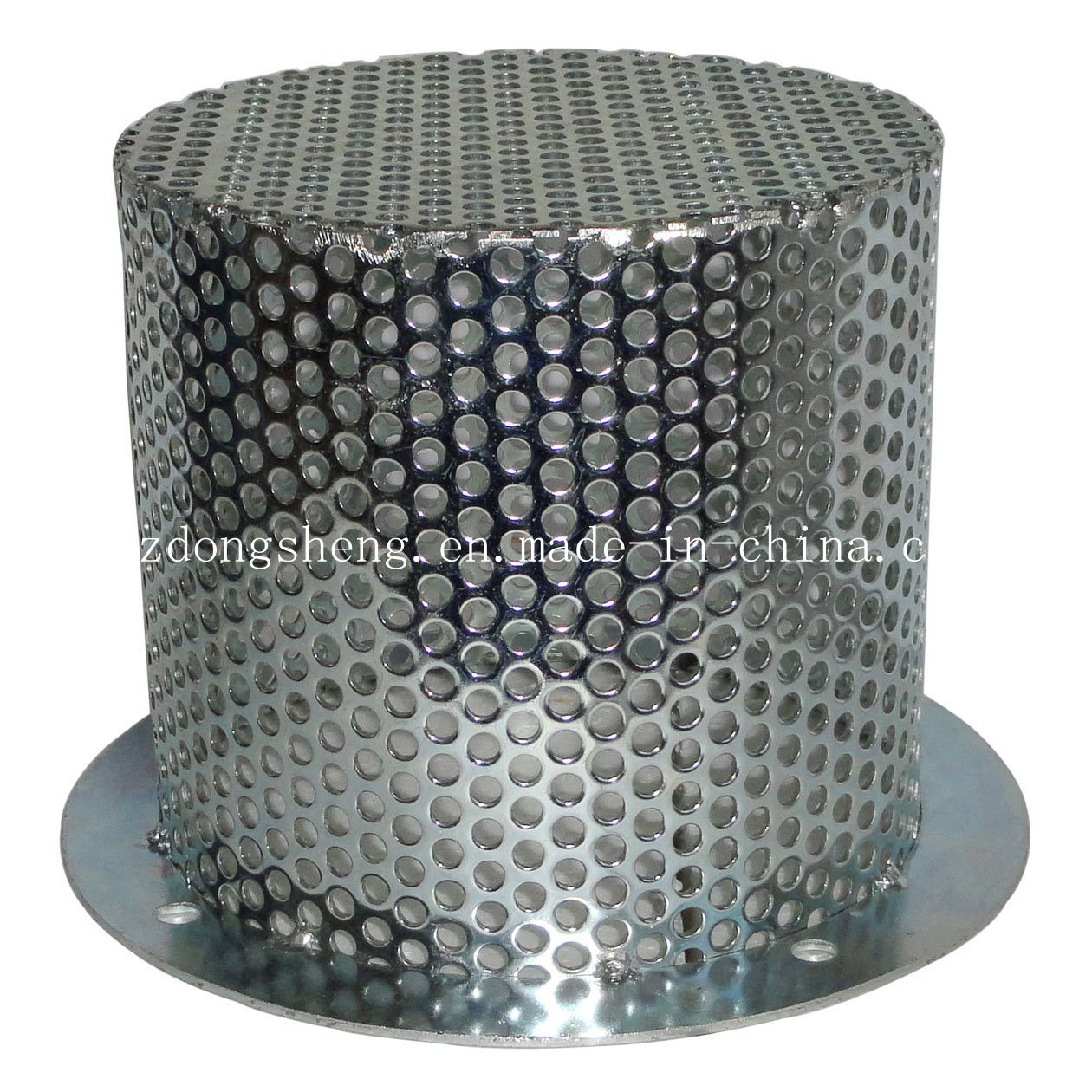

Strainer for Flanges End
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GE-2451 Strainer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Zinc Plated Steel |
| Size Range: |
Dn50-Dn300 |
| Drilling: |
Available with Pn10 & Pn16 Drilling |
Product Description
Description:
Silent lift check valve with strainer is the same as the foot valve in the specification and usage.
Material: WCB / SS304 (Zinc Plated Steel)
Available with PN10 & PN16 Drilling
50mm 65mm 80mm 100mm 125mm 150mm 200mm 250mm 300mm
Features:
1. Filter for Check Disk valve, flange ends.
2. Made by Steel, Zincado.
3. Max. Working pressure 16 Kg / cm2.
4. Working temperature -10 ºC + 100 ºC.
GENERAL DIMENSIONS
| Size | PN | Dimensions (mm)
L D1 D2 |
| 2“ | 16 | 80 | 156 | 111 |
| 2 1/2” | 16 | 100 | 176 | 131 |
| 3“ | 16 | 120 | 192 | 148 |
| 4” | 16 | 150 | 212 | 168 |
| 5“ | 16 | 175 | 242 | 198 |
| 6” | 16 | 200 | 275 | 222 |
| 8“ | 16 | 250 | 332 | 278 |
| 10” | 16 | 300 | 385 | 329 |
| 12“ | 16 | 350 | 445 | 384 |
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.
We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.
We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
Laizhou dongsheng valve co.,Ltd is a professional valve plant, is a collection of research and development, design, the manufacture, the sale of integrated specialized company. Our main products are series of check valves, including all kinds of single disc swing check valve, double disc swing check valve, flange and threaded ball check valve, flange and wafer silent check valve, stainless steel lift check valve, diaphragm valve, ball valve and butterfly valve etc.
We hold a set of scientific and strict management system, strong technical force, advanced processing equipment and reasonable technical progress, high technology and quality technicists and workers. We have 200 employees, and our factory area is 30000 square meter. We always hold "Do to the quality of survival, to the credibility of development.", so we produce every product carefully and treat every customer sincerely. Our products are used to open and close the pipeline of oil, chemical, water, gas and food etc. Our products are exported mainly to Europe, America, Africa, Southeast Asia, the Middle East and Russia etc. Our products are praised by foreign and domestic customers.
We own good quality certificated by ISO9001 and CE. Welcome friends from home and abroad to visit us. And we look forward to having a sincere and favorable cooperation with you.
