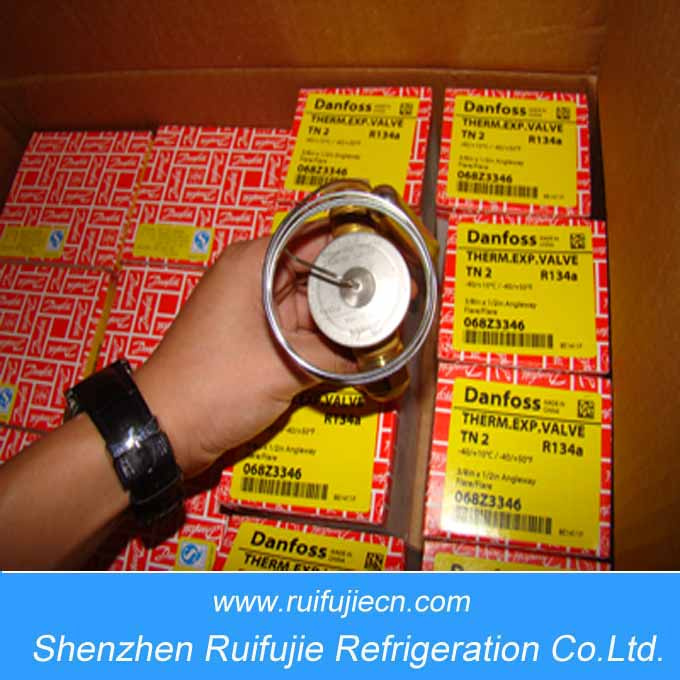

Tn2 Danfoss Thermostatic Expansion Valves
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TN2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

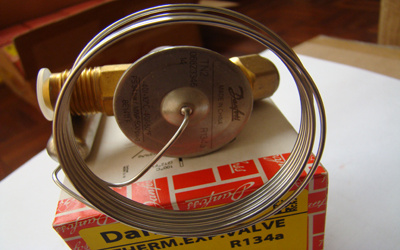

TN2 Danfoss Thermostatic Expansion Valves
Danfoss thermostatic expansion valves(TGE series)
Regriratant: R22/R404A/R507
Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator. The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator. The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.
Product Description
T 2/TE 2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants. T 2/TE 2 is supplied with an interchangeable orifice assembly for easy stocking and service.
Product Features
- TN 2/TEN 2, flare/solder, R134a, element / valve body Angleway valve body, inlet size 3/8 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar. Equalization connection size, TE 2, flare/solder, versions with mm-connections: 6 mm, versions with in.-connections: 1/4 in.
| Brand: | Danfoss |
| Colour: | - |
| Connection Size: | - |
| Connection Type: | Flare/Solder |
| Length (M): | - |
| Material Type: | Brass |
| Model Number: | TN 2 |
| Nominal Running Current (A): | - |
| Operating Temperature: | - |
| Pressure: | - |
| Voltage: | - |
| Warranty: | 1 Year |
| Phase: | - |
| Refrigerant Suitability: | R134a |
| Valve Connections: | 3/8 x 1/2 |
| Defrost: | - |
| Evaporator Fans: | - |
| Cable Length (mtr): | - |
| Refrigerant | Vlave type | Pressure Equation | Capillary | Connection size | Poduct Code |
| Inlet×Outlet | N Series -40C to +10C | NM Series -40C to -5C | NL Series -40C to -15C | B Series -60C to -25C |
| m | in.×in. | mm×mm | Without MOP | With MOP | With MOP | With MOP | Without MOP | With MOP |
| R22 | TX2 | Internal | 1.5 | 3/8×1/2 | 10×12 | 068Z3206 | 068Z3208 | 068Z3224 | 068Z3226 | 068Z3207 | 068Z3208 |
| TXEX2 | External | 1.5 | 3/8×1/2 | 10×12 | 068Z3209 | 068Z3211 | 068Z3225 | 068Z3227 | 068Z3210 | 068Z3229 |
| R134a | TN2 | Internal | 1.5 | 3/8×1/2 | 10×12 | 068Z3346 | 068Z3347 | 068Z3393 | 068Z3369 |
|
|
| TEN2 | External | 1.5 | 3/8×1/2 | 10×12 | 068Z3348 | 068Z3349 | 068Z3392 | 068Z3370 |
|
|
| R404A/R507 | TS2 | Internal | 1.5 | 3/8×1/2 | 10×12 | 068Z3400 | 068Z3402 | 068Z3406 | 068Z3408 | 068Z3401 | 068Z3410 |
| TES2 | External | 1.5 | 3/8×1/2 | 10×12 | 068Z3403 | 068Z3405 | 068Z3407 | 068Z3409 | 068Z3404 | 068Z3411 |
| R12 | TF2 | Internal | 1.5 | 3/8×1/2 | 10×12 | 068Z3202 | 068Z3236 | 068Z3220 | 068Z3222 |
|
|
| TEF2 | External | 1.5 | 3/8×1/2 | 10×12 | 068Z3204 | 068Z3237 | 068Z3221 | 068Z3223 |
|
|
| R502 | TY2 | Internal | 1.5 | 3/8×1/2 | 10×12 | 068Z3212 | 068Z3214 | 068Z3230 | 068Z3232 | 068Z3213 | 068Z3234 |
| TEY2 | External | 1.5 | 3/8×1/2 | 10×12 | 068Z3215 | 068Z3217 | 068Z3231 | 068Z3233 | 068Z3216 | 068Z3235 |
| R407C | TZ2 | Internal | 1.5 | 3/8×1/2 | 10×12 | 068Z3496 | 068Z3516 |
|
|
|
|
| TEZ2 | External | 1.5 | 3/8×1/2 | 10×12 | 068Z3501 | 068Z3517 |
|
|
