Product Description

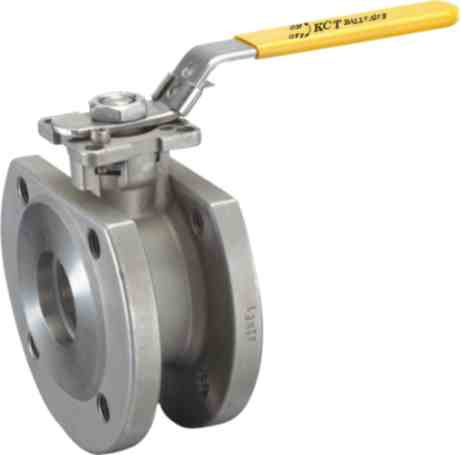

Product name: Wafer ball valve, 1pc Body High Platform Float, Thin-Type/ Flanged end
1)Size: DN15-DN150
2)Pressure: 16-40Mpa
3)Temperature Range: -20~232oC~300oC
4)Suitable medium: Water, Oil, gas, and some Corrosive liquid
Design Standards
A) Design & Manufacture: API 608, API 6D, BS 5351, ASME B16.34
B) Face to Face Dimension.: API B16.10, API 6D, DIN 3202
C) End Connection: ASME B16.5, DIN2543-2550
D) Test and Inspection: ISO5208, API 6D, BS 6755
We are able to manufacture similar products according to your special requirements.
Our Company is Kaixite Valve Co., Ltd Ours is a responsible company for customers. We are professional manufactory for ball valve Product line: 2PC ball valve, 3PC ball valve, 3 way ball valve, thread end ball valve, flanged ball valve, socket weld ball valve, butt weld ball valve, hoop end ball valve, screw end ball valve, wafer type ball valve, floating ball valve, Trunnion mounted ball valve.
The most importance is our quality is really good Our product advantage:
ISO5211 direct mounting pad Full silicasol technology, Fire safe design and construction, Anti-static devices for ball-stem body, Blow-out proof stem, double stem sealing to comply with TA-LUFT requirements, Pre-Load 2 belleville washer to self-adjust packing.
