Wcb Double Flange Triple Offset Butterfly Valve
| Price: |
US $ 30.55-35.55/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
D71F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body: |
Wcb |
| Size: |
1"-40" |
| Color: |
Mfs |
| Place Of Origin: |
Zhejiang,China |
| Connection Form: |
Flange |
| Structure: |
Three-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Household Usage |
| Driving Mode: |
Gearbox |
Product Description

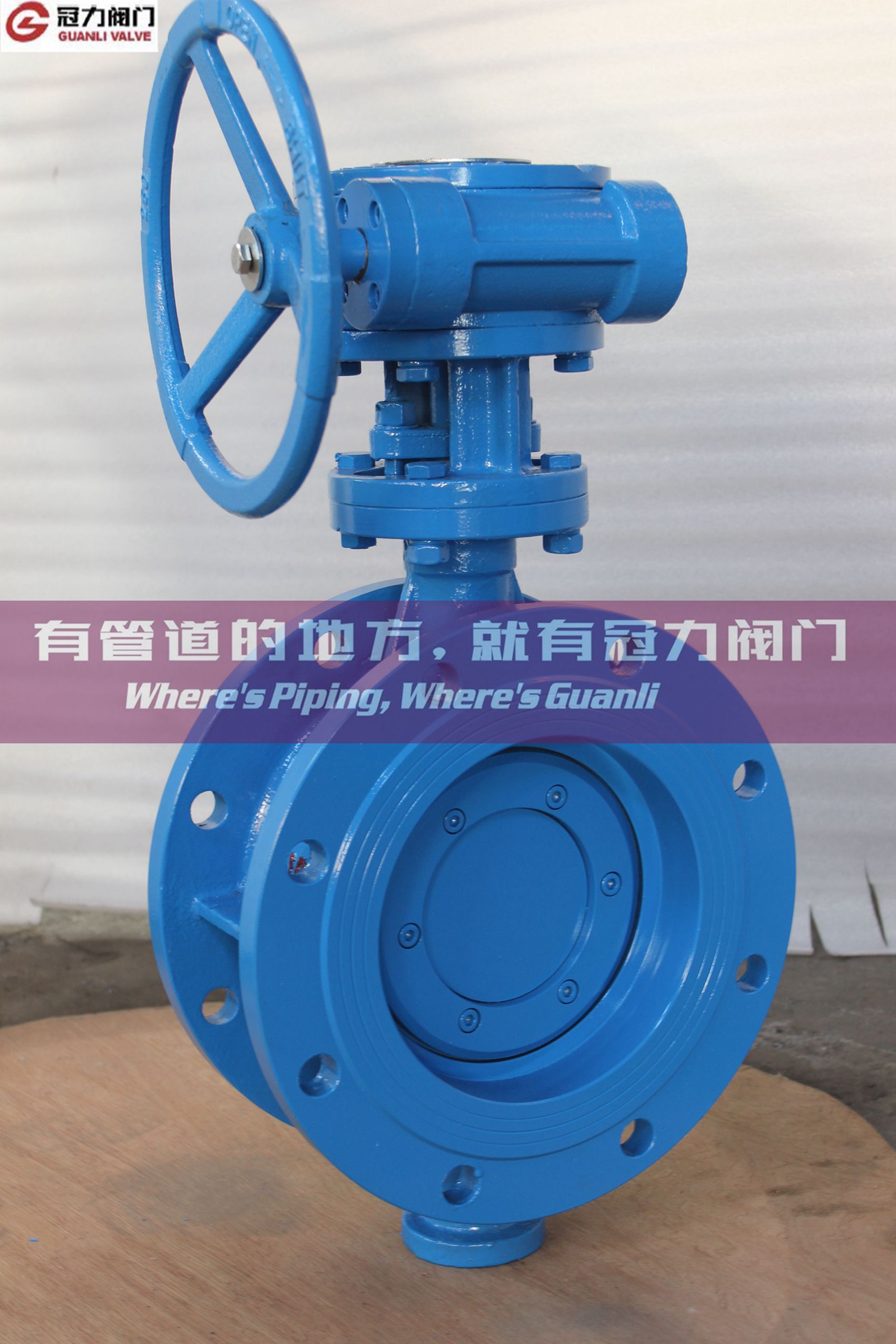

WCB Double Flange Triple offset Butterfly Valve
Product Description
1.Size:2"-48"
2.Pressure:150LB-300LB
3.Materials:WCB,WCC,LCB,LCC,CF8 ect.
4.Operated type:Bevel Gear
5.Temp.:-29°---425°.
6.Medium:Water,steam,oil,gas ect.
Standard:
1.Design standard: JB/T8527-97,ANSI B16.34
2.Face to Face Dimension:GB12221-89,API609
3.Tubing Flange:JB/T79-94,GB9113,ANSI B16.5
4.Test&Inspection:GB/T13927-92,API598
1 |
Parts name |
Material |
2 |
Valve body |
CF8,CF8M,WCB |
3 |
Disc |
SS304,SS316,WCB |
4 |
Stem |
SS304,SS316,SS420 |
5 |
Seat |
SS304,SS316,WCB |
6 |
Packing |
Soft graphite |
Triple offset butterfly valve sizes
Connection dimension |
Class 150 |
Class 300 |
Size |
Length |
D |
D1 |
D2 |
Z-d |
Length |
D |
D1 |
D2 |
Z-d |
Inch |
mm |
2" |
108 |
152 |
120.5 |
92 |
4-19 |
108 |
165 |
127 |
92 |
8-19 |
3" |
114 |
190 |
152.5 |
1278 |
4-19 |
114 |
210 |
168 |
127 |
8-22 |
4" |
127 |
229 |
190.5 |
157 |
8-19 |
127 |
254 |
200 |
157 |
8-22 |
5" |
140 |
254 |
216 |
186 |
8-22 |
140 |
279 |
235 |
186 |
8-22 |
6" |
140 |
279 |
241.5 |
216 |
8-22 |
140 |
318 |
270 |
216 |
12-22 |
8" |
150 |
343 |
298.5 |
270 |
8-22 |
150 |
381 |
330 |
270 |
12-26 |
10" |
160 |
406 |
362 |
324 |
12-25 |
160 |
445 |
387 |
324 |
16-29 |
12" |
178 |
483 |
432 |
381 |
12-25 |
178 |
521 |
451 |
381 |
16-32 |
14" |
190 |
533 |
476 |
413 |
12-29 |
190 |
584 |
514 |
413 |
20-32 |
16" |
216 |
597 |
540 |
470 |
16-29 |
216 |
648 |
571 |
470 |
20-35 |
18" |
222 |
635 |
578 |
533 |
16-32 |
222 |
711 |
628 |
533 |
24-35 |
20" |
229 |
699 |
635 |
584 |
20-32 |
229 |
775 |
688 |
584 |
24-35 |
24" |
267 |
813 |
750 |
692 |
20-35 |
267 |
914 |
813 |
692 |
24-41 |
30" |
292 |
887.5 |
846 |
813 |
44-22.4 |
292 |
990.5 |
921 |
845 |
36-38 |
32" |
318 |
941.5 |
900 |
864 |
48-22.4 |
318 |
1054 |
978 |
902 |
32-41 |
36" |
330 |
1057 |
1010 |
972 |
44-25.4 |
330 |
1172 |
1089 |
1010 |
32-45 |
≥36",please inquiry. |
Triple offset butterfly valve standard compliance
Design & Manufacture |
Face to face |
Welding dimension |
Inspection &test |
API 609 |
ANSI B16.10 |
ANSI B16.25 |
API 598 |
Note
1.ALL of valve part materials comply with ASTM standard.
2.Above material is our normal one.
3.Client has special requirement for it,we choose material as per detailed site condition.
