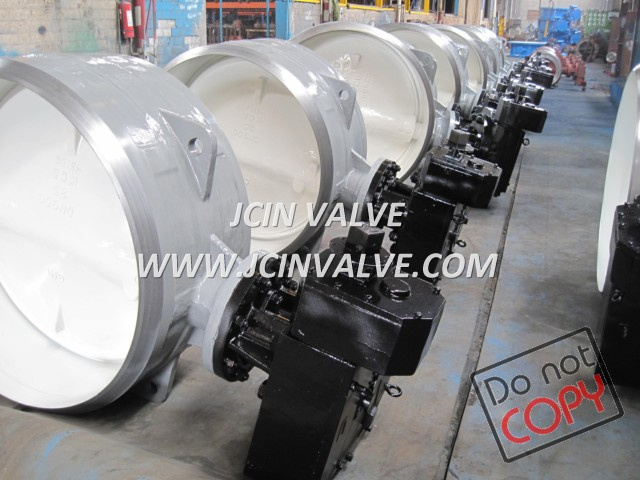

Welding Ends Stainless Steel Butterfly Valve with Manual (D363H)
| Price: |
US $ 56-30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
D363H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size:Dn50 ~ Dn2400: |
2" ~96" |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Material Of Seal Surface: |
Metal Hard Sealed |
| Connection Form: |
Welding |
| Structure: |
Three-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Medium Temperature (',120??C
|
| Application: |
Gas Industrial Usage |
Product Description
Suitable for pipe of high temperature, high pressure, fire-proof, jacket and more as start and stop or adjust medium,
Compact configuration, tiny bulk, light and operate skillfully and conveniently, adopts three-dimensional eccentric elasticity or multiple layers hard sealing configuration, hermetical capability can reach to zero leakage. This kind of valve with no flange, which makes pipe elegantly and binding up conveniently.
Applicable Standard
Design Standard: API 609, DIN 3354;
Face to Face: API 609, EN 558-1, DIN 3202; ISO 5752;
End Connection: ANSI B16.25, GB/T12224;
Inspection and Test: API 598, DIN 3230;
Design Features
Triple eccentric structure
Low Opening & Clothing Torque
Metal to metal seated
Blow-out proof shaft
ISO top flange
order decription example:
Welding ends butterfly valves
triple-ex butterfly valves welding ends acc DIN
Bi-directional to 16 bar opposite pressure
temp.-30...+200C
body/disc WCB/WCB
stem: SS420
seat: SS304
seal ring: ss304+graphite
face to face F4
lamela fixed on disc
manual gear
|
Size: |
2" ~96" (DN50 ~ DN2400) |
|
Rating: |
ANSI 150lb ~ 600lb(PN2.5~PN100) |
|
Body Materials: |
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel. |
|
Operation: |
Lever, Worm Gear; |
|
|
please contact us for other sizes, materials, pressure. |
