Prod Model: |
2L |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Port Size: |
1/ 2", 3/4", 1", 1 1/4", 1 1/ 2", 2" |
Port Thread: |
G, Bsp, NPT, Flange |
Orifice: |
12, 15, 20, 25, 32, 40, 50 |
Material: |
Brass or Stainless Steel |
Temperature: |
-60~200 |
Pressure: |
0.3-16 Bar |
Media: |
Steam, Hot Water, Oil, etc. |
Sample Leadtime: |
2-3 Days |
Order Leadtime: |
7-10 Days After The Payment Is Finished |
Warranty: |
One Year's Guarantee |
Type: |
Pilot Operated |
Valve Structure: |
Pilot Piston Structure |
Application: |
Water Industrial Usage |
Connection Form: |
Thread or Flange |
Power Supply: |
AC or DC |
Product Description
Detailed Product Description

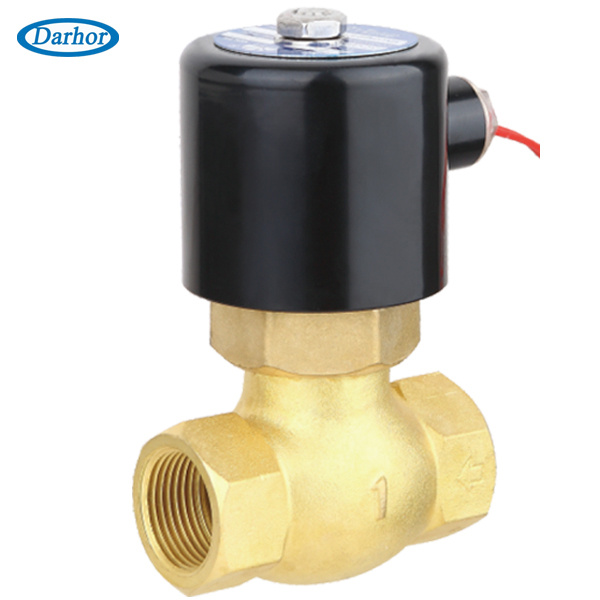

Steam valve
1. ISO 9001: 2000, CE approved
2.1 million times life testing
3. Reliable quality
4. One year guarantee
Steam valve 2L series PTFE piston structure
Characteristic:
1. Pilot operated piston construction with low power consumption
2. Seal serves longtime at steam ambient;
3. Used for long-time working in pipeline system.
Medium: Steam and Hot Water, Oil, etc.
Temperature:
PTFE Seal: -4F to 250F, -20 to 180
VITON Seal: 14F to 300F, -10 to 150
Pressure: 2L: 0.3bar ~ 16bar
Port Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Port Thread: BSPP, BSPT, NPT, UNF
Orifice (mm): 12, 15, 20, 25, 32, 40, 50
Voltage:
DC - 12V, 24V
AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance: +/- 10%
Coils: Y42B, 35VA (AC), 30W (DC), IP65, 100%ED
Material:
Body - Brass
Seal -PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Valve Body |
Orifice |
Cv |
Min Pressure(bar) |
Max Pressure(bar) |
|
|
|
|
AC(35VA) |
DC(30W) |
2L15 X X X |
15 |
4.5 |
0.3 |
16 |
16 |
2L20 X X X |
20 |
9.3 |
0.3 |
16 |
16 |
2L25 X X X |
25 |
12 |
0.3 |
16 |
16 |
2L32 X X X |
32 |
24 |
0.3 |
16 |
16 |
2L40 X X X |
40 |
29 |
0.3 |
16 |
16 |
2L50 X X X |
50 |
48 |
0.3 |
16 |
16 |
