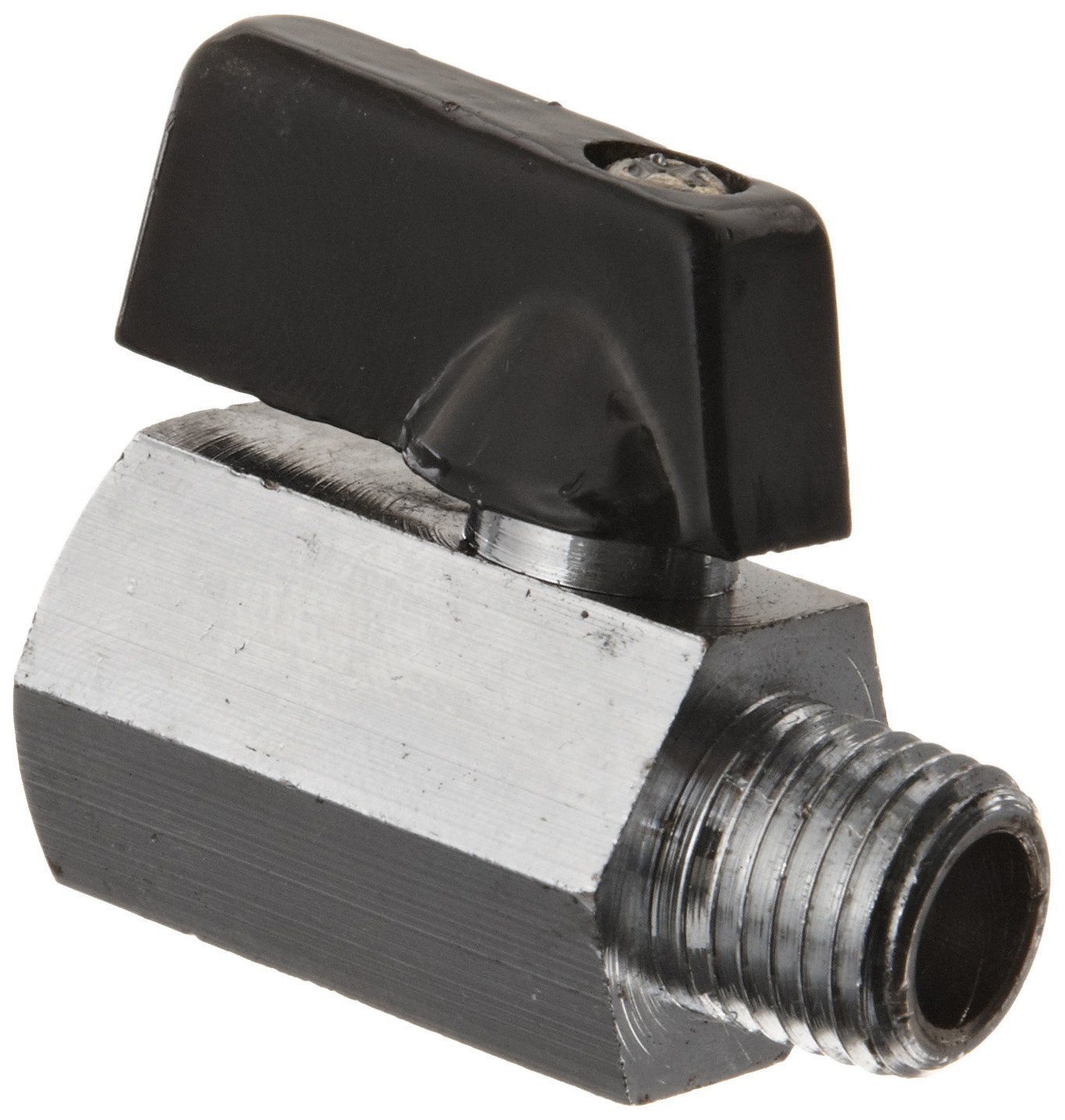

1/4" NPT Male X NPT Female Brass Mini Ball Valve,
Price: |
US $ 1.2-2/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product FeaturesChrome-plated brass for higher corrosion resistance than regular brass or steel
Lever handle for on/off manual control
Full port flow for higher operating efficiency than standard port
Inline valve for connecting two pipes going in the same direction
Female and male NPT threads for connecting male threaded pipe fittings to female threaded pipe fittingsMaterial | Size | Medium | Seal | Weight | Thread | Treatment |
Brass | 1/4, 1/8. 3/4, 3/8 INCH | Water | PTFE | 20g to 50g | NPT | Lead Free |
Stainless Steel | 1" 1 -1/2 inch | Gas | NBR | 60g to 100g | GB | Zinc |
Alloy | 2 inch | Air | EPDM | 200g | PT | Nickel |

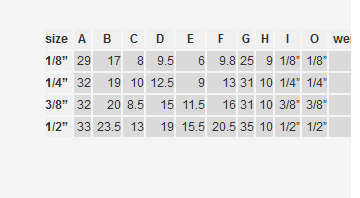

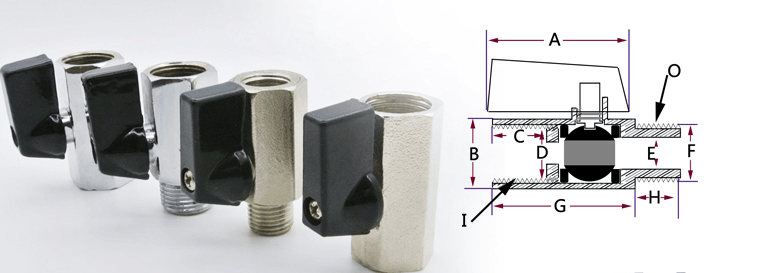

size :Product Description:BOSS Mini ball valve is made of chrome-plated brass for higher corrosion resistance than regular brass or steel, and has a lever handle for on/off manual control, and full port flow for higher operating efficiency than standard port. This inline valve has 1/4" male and female National Pipe Taper (NPT) threads for connecting a female threaded pipe and a male threaded pipe going in the same direction. This full port ball valve is pressure rated to 400 pounds per square inch (psi) at a maximum operating temperature of 400 degrees F, and is suitable for use in air, water, or inert gas applications.
Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
*SAMPLES POLICY: FREE CHARGE
*TOOLING POLICY: Charge, will refund after receive the 1st order
* MOQ: NO MOQ REQUEST for regular customers
Prod Model: |
BOSS 2201 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Boss Mini Ball Valve |
Weight: |
70g |
Ball Material Type: |
Chrome Plated Brass |
Maximum Pressure: |
400 Psi |
Minus Tempeture: |
-10 Degree |
Upper Tempeture: |
120 Degree |
Size: |
1/4 |
Connect Type: |
NPT Female |
Pacakge: |
Poly Bag with Carton |
Quality Control: |
CE Asme UL ISO |
Material: |
Brass |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Oil Seal Ball Valve |
Type: |
Fixed Ball Valve |
Application: |
Household Usage |
Boss was set up in 2009 in Wuxi, it takes 1 hour from Shanghai Railway station to our factory.
Business scope: Vavle and pump develope, manufacture, sell and service.
Looking for abroad companies agent biz
Advantage:
1, CNC machines 20 sets
2, production lines: 4
3, CE, asme products
4, follow Germany and Italy technology
5, 3 stores and 2 factoreis
Company Policy: Honest, Service, Quality
Welcome to your visit warmly.
