Specification:
Design and Manufacture: EN 598, BS 5155
Flange and Drilling: ANSI/ASME B16.5/B16.47
Face To Face Dimension: API 609
Top Flange: ISO 5211
Test and Inspection: API 598
Marking: API 609
Certificate: ISO&CE
|

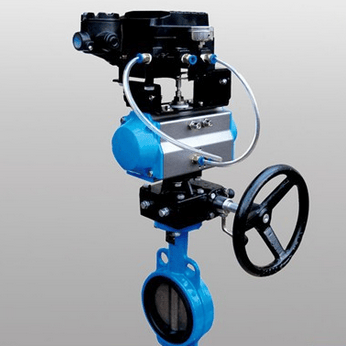

10 inch cast iron wafer butterfly valve for cement |
Size: | DN50-DN1000 |
End flange: | ANSI B 16.1,EN1092,AS2129 |
Face to face: | ANSI B 16.10 |
Top flange: | ISO 5211 |
Normal pressure: | PN1.0/1.6MPa(150/200PSI); Class 125/150; JIS 5K 10K 16K 20K; Table D/E |
Body: | CI/DI/WCB/ALB/CF8/CF8M |
Disc: | DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel |
Stem: | 410/416/304/431/17-4PH/316/monel |
Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM()/PTFE |
Suitable temperature: | -25°C~120°C |
Medium: | Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
