The 100 series control valve design features
Innovative packing structure design
The top guided structure design
Detachable structure design
Standard modular design
Reading tips
For detailed product information, product animation, please click "contact us",
Then visit the company's website, Download and reading Or contact us directly
Outline

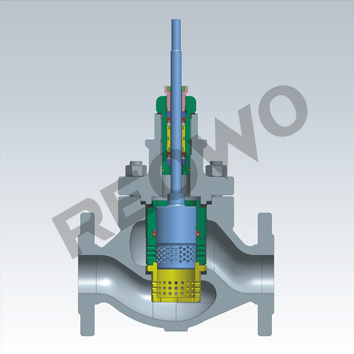

The 10S Series multi-stage pressure drop control valve adopts the sleeve guided structure and pressure balanced plug. It is mainly used in service conditions with high differential pressure and applications that produce flash evaporation and cavitation. According to different parameters, it is designed with different pressure drop cages that form a multi-stage pressure drop trim. The cages designed according to different service conditions ensure the occurrence of flash evaporation and cavitation in the valve is eliminated. Throttling is carried out from the time when the media contact the first cage, and the high differential pressure at the inlet is gradually reduced after several times of throttling. Thus it is effectively ensured that the pressure is always above the saturated vapor pressure when the media flow in the valve, and the occurrence of flash evaporation and cavitation is eliminated, so that the service life of the control valve is prolonged under severe service conditions.
|
DN |
15~450mm |
|
PN |
Class150~2500 |
|
Applicable temperature range |
-30- 260(single-seat structure) |
|
-196- 570(double-seat structure) |
|
Trim features |
sleeve guided type, balanced trim structure, with balanced seal ring structure |
|
Body type |
straight-through type, angle type |
|
Bonnet type |
standard type, heat dissipation type, cryogenic type, bellows |
|
Flow characteristic |
equal percentage, linear, quick open |
|
Shut-off class |
ASME B16.104 V (standard metal seat) |
|
ASME B16.104 V I (shut-off soft seat) |
|
Pipe connection type |
flange type, butt welding type |
|
Actuator type |
pneumatic diaphragm actuator |
|
pneumatic piston actuator |
|
Electric actuator |
