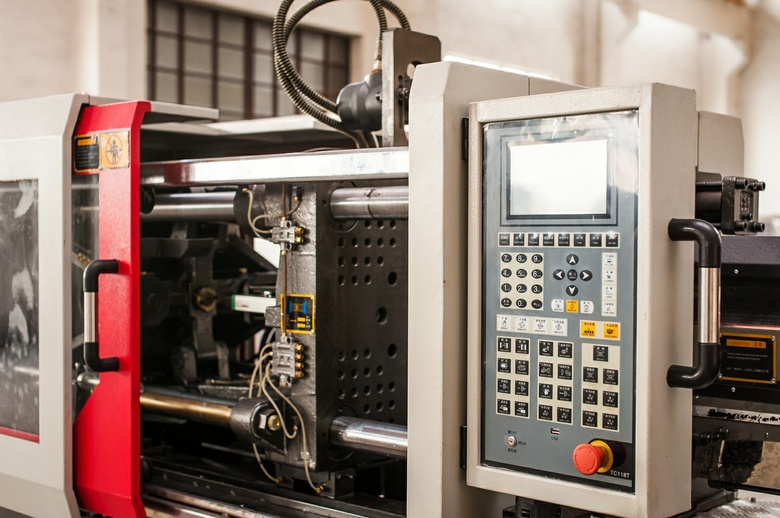

220 Ton Pipe Fitting Plastic Injection Molding Machine

Name: 220 Ton Pipe Fitting Plastic Injection Molding Machine
Brand: Valve Industry
SKU: 687461982
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 2600/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Changzhou Worldmark Machinery Co., Ltd.

Showroom Product Company Profile

220 Ton Pipe Fitting Plastic Injection Molding Machine

Product Description

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai

INJECTION UNIT		Unit	WMK-220
		Unit	A	B	C
	Screw Diameter	Mm	45	50	55
	Screw L/D Ratio	L/D	22.2	20	18.2
	Short Size	Cm3	381	471	569
	Injection weight	G	347	428	518
	Injection weight	oz	12.2	15.1	18.2
	Injection Rate	g/s	170	210	254
	Plasticizing capacity	g/s	19	23.2	28.7
	Injection Pressure	Mpa	229	186	154
	Screw Speed	Rpm	0-190
	Injection Sroke	mm	240
CLAMPING UNIT	Clamp Force	KN	2200
	Space Between Tie Bars	mm	510*510
	Toggle Stroke	mm	500
	Max. Mold Height	mm	530
	Min. Mold Height	mm	200
	Ejector Stroke	mm	150
	Ejector Tonnage	KN	62
	Ejector Number	P	5
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	18.5
	Heater Power	Kw	14.25
	Machine Dimension(LWH)	M	5.31.51.95
	Machine Weight	T	6.9
	Oil Tank Capacity	L	380
	Hopper Volume	Kg	50

Prod Model:	WMK-220
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force:	2200kn
Max. Pump Pressure:	16mpa
Machine Dimension(LWH):	5.31.51.95m
Machine Weight:	6.9t
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermoplastic
Type:	Injection Molding

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
