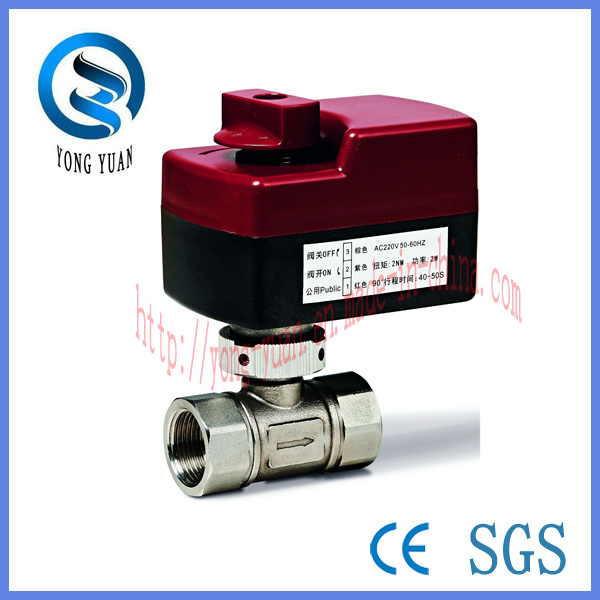

Product description BS-858 series of motorized ball valve are composed of valve body and actuator. Can be widely used in the heating system, air-conditioning system and floor-heating system etc.Product featuresBuilt in high quality micro switch, the valve opening and closing process after the completion of the motor is not electricity, so long life, energy saving, and safety;
Shell material: High strength flame retardant engineering plastics;Manual operation, with position indicator;
Quick connection mode, easy disassembly and maintenance;
AC voltage synchronous motor.
Technical parameters
| BS858-15 | BS858-20 | BS858-25 | BS858-15S | BS858-20S | BS858-25S |
| Port Size | 1/2" | 3/4" | 1" | 1/2" | 3/4" | 1" |
| Valve form | 2-way ; | 3-way ; |
| Power Supply | 110-240VAC±10% 50/60HZ, 24VAC 50/60HZ |
| Stroke Time | 35S(50Hz) / 35S(60Hz) |
| Ambient temperature | 65ºC max |
| Pressure | PN16(1.6MPa) |
| Relative humidity | 95% max |
| Power consumption | 5VA(Only when the valve changes position) |
| Grade of Protection | IP55 |
| Body material | Forged brass,304 stainless steel |
| Temperature of Media | 1-95ºC |
| Ball material | Brass plating |
| Torque | 2N.m |
