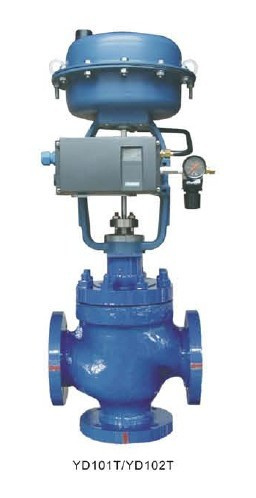

YD101T SERIES 3-Way Diverting Control valves
YD101T SERIES 3-Way Diverting Control valves refer to overseas advanced structure, designed with cage guided, double seat structure.
1. As to traditional 3-way valve structure, cage valve structure has great improvement, simple structure, lower material cost.
2. 3-way Diverting Control Valves can divide the flow into two directions.
3. They are widely used in petrochemical applications, which need diverting and mixing, and can replace two sets of cage guide control valves.
Specifications of YD101T SERIES 3-Way Diverting Control valves
A)Body type: YD101T
B)Body size: 1"~16" (25A~400A)
C)Body rating: ANSI Class150~600, PN1.0 MPa ~PN10 MPa
D)Fluid temp.: -196~+538 Deg.
E)Connections: (RF\MFM\RJ), (50A SW, 80ABW)
Flange(RF\MFM\RJ), Weld ends (SW: 2" and under, BW: 3" and over)
F)Body materials: WCB\WC6\CF8\CF8M, etc.
G)Trim materials: 410SS/HT\304SS\316SS\316SS +Stellite\17-4pH, etc.
H)Rangeability: 30: 1
I)Flow characteristics: \ Equal percentage\Linear
J)Leakage: CV× 0.01%, ANSI Class IV
K)Actuator: DY00LAPneumatic Diaphragm Actuator
PY00LAPneumatic Cylinder Actuator
EK00LA\EQ00LASolid State Electronic Actuator
If you are interested in YD101T SERIES 3-Way Diverting Control valve, please don't hesitate to contact us!
