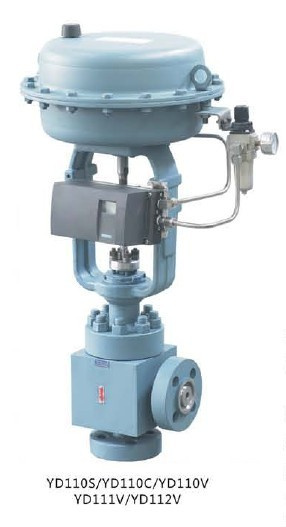

YD111V Angle Type Labyrinth Velocity Control Valves(Angle valve)
YD111V Angle Type Labyrinth Velocity Control Valves(Angle valve) with this series, slurry-containing fluids, high viscosity fluids, flashing fluids or ultra-high differential pressure fluids can be handled easily. Depending on the fluid condition, most suitable model can be selected comparing functions and prices.
Specifications of YD111V Angle Type Labyrinth Velocity Control Valves(Angle valve):
A)Body type: YD111V
B)Body size: 1/2"~15" (15A~300A)
C)Body rating: ANSI Class150~2500, PN1.0 MPa ~PN42 MPa
D)Fluid temp.: -196~+538Deg. (565Deg. Can be up to 565 Deg. Under high pressure)
E)Connections: (RF\MFM\RJ), (50A SW, 80ABW)
Flange(RF\MFM\RJ), Weld ends (SW: 2" and under, BW: 3" and over)
F)Body materials: WCB(A105)\WC6(15CrMo)\CF8(304SS)\CF8M(316SS), etc.
G)Trim materials: 410SS/HT\304SS\316SS\316SS +Stellite\17-4pH, etc.
H)Rangeability: 50: 1
I)Flow characteristics: \ Equal percentage\Linear
J)Leakage: Rating CV× 0.01%, ANSI Class IV
K)Actuator: DY00LAPneumatic Diaphragm Actuator
PY00LAPneumatic Cylinder Actuator
EK00LA\EQ00LASolid State Electronic Actuator
If you are interested in YD111V Angle Type Labyrinth Velocity Control Valves(Angle valve), please don't hesitate to contact us!
We provide carbon steel angle valve, stainless steel angle valve, alloy steel angle valve, forged steel angle valve, pressure seal angle valve and bellows sealed angle valve.
Our company is a professional company, which engaged in the area of control valves, especially for those non-standard products is our superiority. For example,
1. YD900E rotary disk on-off valve used for slurry fluid; Abrasive; Corrosive and so on.
2. YD710H desuper-heater for steam system
3. YD100H super high temperature JUG valve for over 1200 centigrade sulfuric acid applications
4. YD300S light-duty butterfly valve for sulfuric acid applications
5. YD400G parallel gate valve for steam system and etc.
YADI come into existence in 2003. It locates in Wuxi city near the TaiHu, which is famous for its beautiful natural scene together with a convenient civil transportation system.
Our company has powerful research and manufacture ability, it has developed high-quallity control valves of diversified types, it offers the widest range solutions for process future challenges. (Such as the hydric cracking delegate of petrochemical, the carbinol and ammonia synthesized delegate of coal-chemical, the critical troop dynamo of electric power industry, the blast furnace and air seperated delegate of steel industry and so on. )
During the past seven years, we have made great progress by custom's support and our hard working. We have established contacts and partnerships with BASF, DSM, AKER KVAERNER, DUPONT, FOSTER WHEELER, BATEMAN. In 2009, new factory has been built and new equipment has been put into production.
Welcome friends from all over the world to our factory, we continue to work hard to supply better goods and high technology products to our customs.
