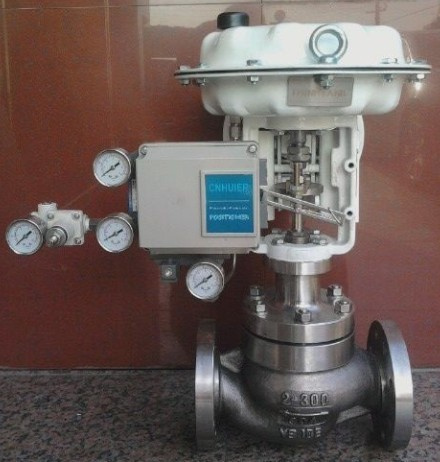

Electric pneumatic single seat (sleeve) control valve is made up of lower resistance through single seat valve or lower resistance sleeve valve attached PS or 3810 series actuator (Germany). There is a servo magnifier in the pneumatic actuator and input control single (4 - 20mA DC or 1 - 5V DC) and single-phase power to control the pressure, flow, temperature, and liquid level.
This valve is widely applied in power, gas, industry chemical, metallurgy, environment protection, light industry, teaching and scientific research areas.
1. Equipped with MF or MFA series multiple springs diaphragm actuators produced by our company, with compact structure, and large output force. Positive and negative effects of the actuators are easy to transform.
2. Small pressure drop loss, large capacity with high precision, and large adjustable.
3. Large oriented coverage, resistance to shock
4. Quick replaceable valve seat, convenient maintenance
5. Its leakage Volume satisfy the requirements of the IEC 60534-4 Class IV
DN50 DN400
Pressure: PN10 PN40
Material: A216 WCB, A105, A 180 F6, CF8M
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
