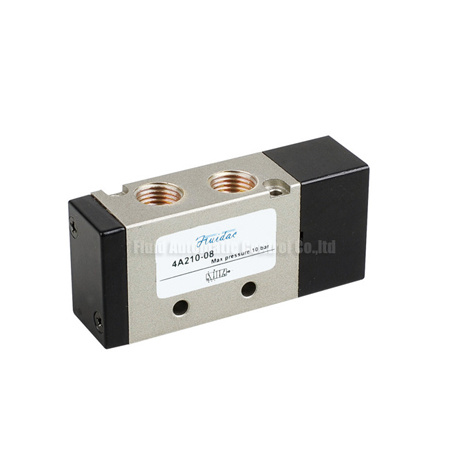

*4A series Air Operated valve airtac interchange
*Aluminum material Body width 18mm,22mm,27mm,34mm
*Air Operated,Double action and spring return for option
*Life cycle 10000000 times
*Pipe joint and Namur joint type for option
*Mature products,cost effectively
ORDERING CODE |
| 4A | 2 | 10 | 08 | B |
| Type | Body Width | Function Type | Joint Port size | Connecting type and Initial State |
| 4A: Two posistion Five Way Air Operated valve | 1:18mm | 10:Two Position Single Coil | M5:M5X0.8 | Blank:Pipe Joint type |
| 2:22mm | 20:Two Position Double Coil | 06:1/8" | B:Namur Type |
| 3A:Two Position Three Way Air Operated valve | 3:27mm | 30C:Three Position Double Coil Center Closed type | 08:1/4" | NC:Normally Closed type |
| 4:34mm | 30E:Three Position Double coil Center Exhausting type | 10:3/8" | NO:Normally Open type |
| 30P:Three Position Double coil Center Pressuer Type | 15:1/2" |
| SPECIFICATION |
| Model no(18mm) | 4A110-M5 | 4A120-M5 | 4A130-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | 3A110-M5 | 3A120-M5 | 3A110-06 | 3A120-06 |
| Position And Way Numbers | Two Position- Five Way | Three Position-Five Way | Two Position- Five Way | Three Position-Five Way | Two position Three way |
| Effective SectionVl VreV | 10mm²(CV=0.56) | 7mm²(CV=0.4) | 12mm²(CV=0.67) | 9mm²(CV=0.5) | 10mm²(CV=0.56) | 12mm²(CV=0.67) |
| Port Size | Inlet,Outlet,Exhausting M5x0.8 | Inlet,Outlet,Exhausting G1/8" | M5x0.8 | G1/8" |
| Model no(22mm) | 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | 3A210-06 | 3A220-06 | 3A210-08 | 3A220-08 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | Three Position-Five Way | Two position Three way |
| Effective SectionVl VreV | 14mm²(CV=0.78) | 12mm²(CV=0.67) | 16mm²(CV=0.89) | 12mm²(CV=0.67) | 14mm²(CV=0.78) | 16mm²(CV=0.89) |
| Port Size | Inlet,Outlet,Exhausting G1/8" | Inlet,Outlet,Exhausting G1/4" | G1/8" | G1/4" |
| Model no(27mm) | 4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A330C-10 | 4A330E-10 | 4A330P-10 | 3A310-08 | 3A320-08 | 3A310-10 | 3A3210-10 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way | Three Position-Five Way | Two Position-FiAe Way |
| Effective SectionVl VreV | 25mm²(CV=1.4) | 18mm²(CV=1.00) | 30mm²(CV=1.68) | 18mm²(CV=1.00) | 25mm²(CV=1.4) | 30mm²(CV=1.68) |
| Port Size | Inlet,Outlet,Exhausting G1/4" | Inlet,Outlet G3/8 Exhuasting Port G1/4 | G1/4" | Exhuast G1/4 In and outG3/8 |
| Model no(34mm) | 4A410-15 | 4A420-15 | 4A430C-15 | 4A430E-15 | 4A430P-15 | 3A410-15 | 3A420-15 |
| Position And Way Numbers | Two Position-Five Way | Three Position-Five Way | Two Position-Five Way |
| Effective Sectional Area | 50mm²(CV=2.79) | 30mm²(CV=1.68) | 50mm²(CV=2.79) |
| Port Size | Inlet,Outlet,Exhausting G1/2" |
| Working Medium | Compressed 40 Micron Filtered Air |
| Motion Pattern | Air Operated |
| Working Pressure | 0.15~0.9MPa |
| Max.Pressure Resistance | 1.2MPa |
| Operating Temperature | 5~50ºC |
| Highest motion Frequency | 5 cycle/Sec |
