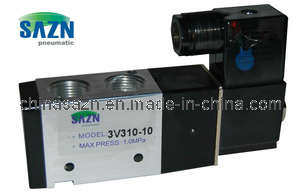

3V Solenoid Valve
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
3V solenoid valve:
1. Applied pressure: 1.5-8kgf/cm2
2. Max. Pressure: 12kgf/cm2
3. Ways: Three port two station
4. Port: 1/8, 1/4, 3/8
|
3V VALVE |
|
|
|
|
|
|
|
|
|
Model |
3V110-M5 |
3V120-M5 |
3V110-06 |
3V120-06 |
3V210-06 |
3V220-06 |
3V210-08 |
3V220-08 |
|
Ways |
two positions three ways |
|
Port size |
M5 |
PT1/8 |
PT1/8 |
PT1/4 |
|
Environment temp |
5-60 |
|
Effective area |
5, 5mm2 |
12mm2 |
14mm2 |
16mm2 |
|
opprative pressure |
1.5-8.0 kgf/cm2 |
|
body materail |
aluminium alloy |
|
Medium |
Clean air |
|
Max Working Frequency |
5 times/ per second |
|
Protection type |
IP65 |
IP65 |
|
Model |
3V310-08 |
3V320-08 |
3V310-10 |
3V320-10 |
|
Ways |
|
|
|
|
|
Port size |
PT1/4 |
PT3/8 |
|
Environment temp |
5-60 |
|
Effective area |
25mm2 |
30mm2 |
|
opprative pressure |
1.5-8.0 kgf/cm2 |
|
body materail |
aluminium alloy |
|
Medium |
Clean air |
|
Max Working Frequency |
5 times/ per second |
|
Protection type |
IP65 |
|
Model |
3V210-06 |
3V220-06 |
3V210-08 |
3V220-08 |
|
Ways |
|
|
|
|
|
Port size |
PT1/8 |
PT1/4 |
|
Environment temp |
5-60 |
|
Effective area |
14mm2 |
16mm2 |
|
opprative pressure |
1.5-8.0 kgf/cm2 |
|
body materail |
aluminium alloy |
|
Medium |
Clean air |
|
Max Working Frequency |
5 times/ per second |
|
Protection type |
IP65 |
| Prod Model: |
3V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
DC Solenoid Valve |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
