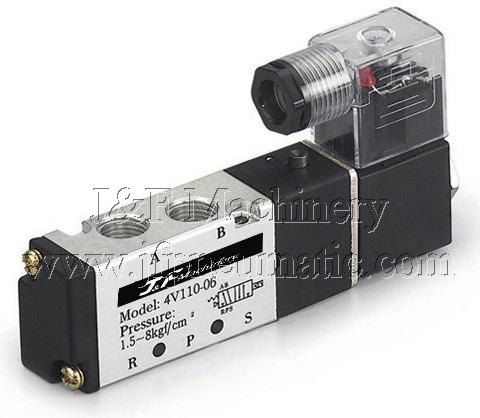

4V100 Series Solenoid Valve / Pneumatic Control Valve (4V010-06 4V120-06 4V130-06)
Product Features
* 5 ports solenoid valve 4V200 series;
* 4V110, 4V120, 4V130C, 4V130E, 4V130P series solenoid valve;
* Internally piloted action, 5 port 2 position or 5 port 3 position;
* Grommet or DIN electrical connector;
* Body: Black anodization, hand anodization, natural anodization
* Voltage: 220V/AC, 110V/AC, 24V/DC, 12V/DC, special voltage is available;
* Port size: M5 x 0.8, 1/8",;
|
Model |
4V110-M5 |
4V120-M5 |
4V130C-M5 |
4V130E-M5 |
4V130P-M5 |
4V110-06 |
4V120-06 |
4V130C-06 |
4V130E-06 |
4V130P-06 |
|
|
4A110-M5 |
4A120-M5 |
4A130C-M5 |
4A130E-M5 |
4A130P-M5 |
4A110-06 |
4A120-06 |
4A130C-06 |
4A130E-06 |
4A130P-06 |
|
Position and Way Number |
Two-position Five-way |
Three-position Five-way |
Two-position Five-way |
Three-position Five-way |
|
Effective Sectional Area |
5.5MM 2 (CV=0.31) |
5mm 2 (CV=0.28) |
12mm 2 (CV=0.67) |
9MM 2 (CV=0.5) |
|
Joint Pipe Bore |
Air inlet=Air outlet=Exhaust=M5" |
Air inlet=Air outlet=Exhaust=G1/8" |
|
Working medium |
40 Micron Filtered Air |
|
Motion Pressure |
Inner Guide Type |
|
Working Pressure |
0.15~0.8Mpa |
|
Max. Pressure Resistance |
1.2Mpa |
|
Operating Temperature |
"-5~60 degree centigrade |
|
Voltage Range |
±10% |
|
Power Consumption |
AC:3.0VA DC:2.5W |
|
Insulatiojn&Protection Class |
F Class.IP65 |
|
Wiring Form |
Lead Wire or Connector Type |
|
Highest Action Frequency |
5 Cycle/Sec |
|
Shortest Excitation Time |
0.05 Second |
