Air source hot water heat pump for heating & hot water
Sanyo compressor with R410A
Tube in tube heat exchanger , copper or sus 316
Thermal expansion valve
project heat pump in factory , hospital , hotel , office and restaurant
strong ply-wood packing box
| Foshan Clitech Air-conditioning Equipment Co.,Ltd |
| air source hot water heat pump |
| Model | Unit | CAR-60XB |
| Rated heating capacity | KW | 57.1 |
| Btu/h | 194881 |
| Hot water supply | T/H | 1.23 |
| Average heating Input power | KW | 12.2 |
| COP |
| 4.67 |
| Power supply | V/PH/Hz |
|
|
| Noise Level | dB(A) | 66 |
| Dimension | Width | mm | 1900 |
| Depth | mm | 1010 |
| Height | mm | 1250 |
| Unit weight | KG | 440 |
| Operating range |
| -10~~43 |
| Throtting Type |
| Electric expansion valve /Thermalexpansion valve |
| Refrigerant |
| R410A |
| Compressor | Type |
| Rotary /Scroll |
| Qty | Piece | 2 |
| Air source heat exchanger | Type |
| Finned heat exchanger |
| Qty | Piece | 2 |
| Fan type |
| Axial big twist fan |
| Motor Power | KW | 1.2 |
| Hot water side heat exchanger | Type |
| Efficient tube in tube heat exchanger |
| Water flow | M3/h | 9.81 |
| Water pressure down | kPa | 42 |
| Pipe size | Inch | 1-1/2 |
| Water side max working pressure | kPa | 1000 |
| Rated hot water working Condition |
| Rated hot water working Condition:air source air inlet dry bulb temp is 20ºC ,wet bulb temp is 15ºC, intial temp of hot water is 15ºC,termination temp of hot water is 55ºC |
|

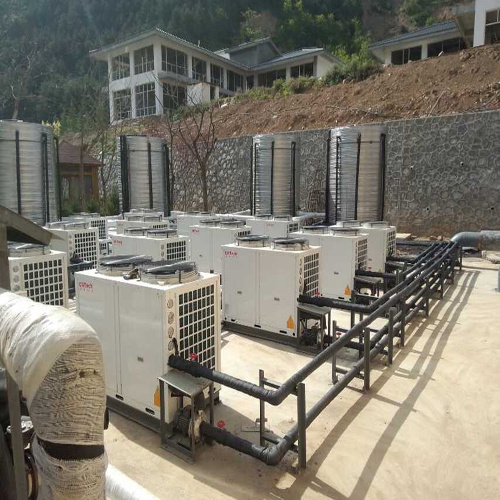

The projects for air source hot water heat pump
The installation for heating and hot water

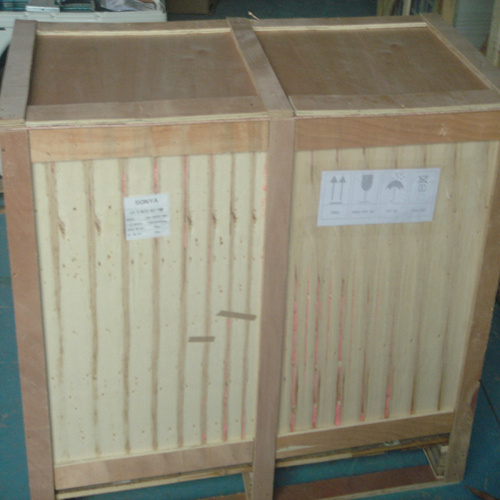

The package for air source hot water heat pump CAR-60XB
Clitech factory established in 2008 years in foshan city, Guangdong province. Now we already developed stable and being the main export heat pump manufacture in China. Every year we will focus new technology heat pumps, and developed more good quality and more stable heat pump to our customers. Our heat pumps certificated ISO, 3C and CE, which have been sold to more than 90 countried and areas all over the world. Our good quaity, high technology and nice service is high praised by our customers.
Our main product fosuc on heat pump, which including air source hot water heat pump 5-100KW heating capacity; Air source heat pump for heating and cooling range from 8kw to 530kw; DC Inverter air source hot water heat pump 11-18KW; Ground source hot water heat pump 8-350KW heating capacity; Water source heat pump for heating and cooling range from 10KW to 290kw; High temp air source heat pump with 70 degree outlet water temp range from 12kw to 80kw; And swimming pool air source heat pump range from 8kw to 100kw, and multi-functional air source heat pump for heating, cooling and hot water from 12ke to 100kw; Multi-functional water source heat pump for heating, cooling and hot water range from 8kw to 48kw and EVI air source heat pump water heater range from 12kw to 80kw. Our heat pump can apply for small and big projects also in domestic and abroad marketing. OEM service can afford too.
Our heat pumps apply for domestic and commercial projects, hospital, office building, domestic home, factory, hotels and restaurant, swimming pools or SPA pools, holiday villages, schools or university and so on, its most for the necessary areas for heating, cooling or hot water. Our heat pumps can connect with solar, fan or floor heating. Its can save lots of energy everyday, its good for the development all over the world...Also saft in our life.
We will afford the nice and professional after-sale service. Maybe the world economic developed fast and fast, hope we not just being customers and supplier, hopely one day we can share the interests and being nice friends.
If you are intested in our heat pumps, welcome to contact us.
