OVERVIEW:

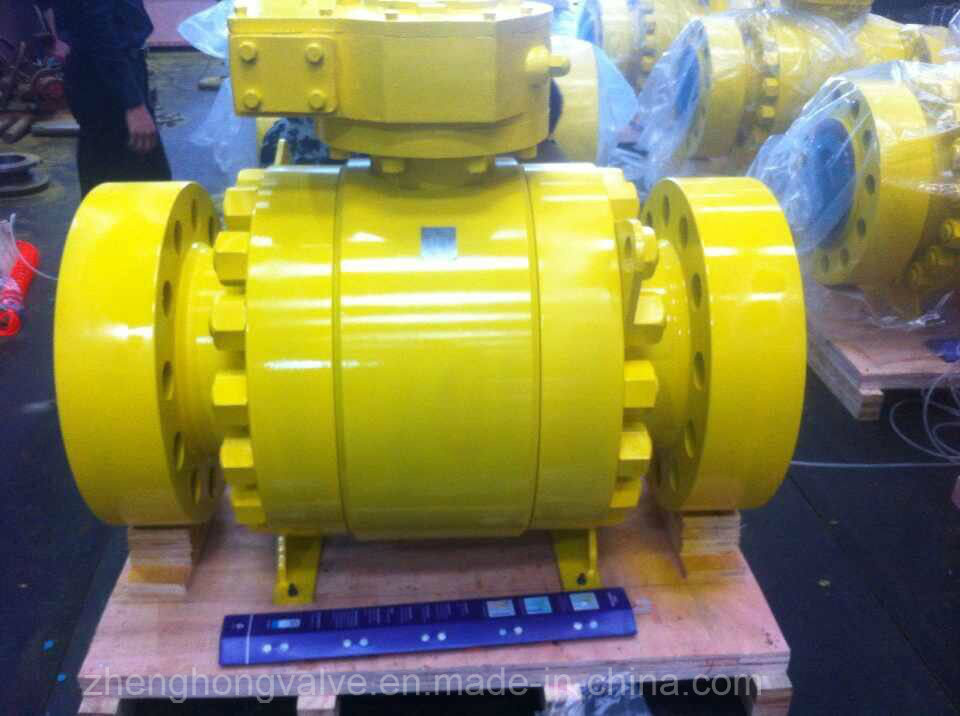

1.Model: Q347Y-1500LB-12
2.Size : 1/4~36"(DN8~DN900)
3.Rating : 150LB~2500LB (PN16 ~ PN420)
4.Connection:FLG,BW,SW
5.Working Temperature:-46~540ºC
6.Seat:PTFE,RPTFE,NYLON,MOLON,PEEK,DEVLON,POM,PCTFE,PPL,
STL NI60,STL NI55,STL20#,STL6,WC,TCC
7.Material:
WCB,LCB,LCC,WC9,WC12,A105,LF2,F304,F316,F316L,F304L,F321,F51,F53,F55,F60,F6a, 20 Alloy,
C61900,C63200,C83600,C37700,Inconel625,Inconel825,Monel400,Monel500,H.C-276ect.
8.Application Specifications:
1.Design and manufacture conform to BS5351;MSS SP-118
2.Socket welded ends conform to ANSIB16.11;JB/T1715
3.Screw ends conform to ANSI B1.12.1;JB/T7306
4.Butt-welded ends conform to ANSI B16.25;JB/T12224
5.Test and inspection conform to API598;GB/T13927;JB/T9092
6.Material conform to ANSI/ASTM
9.Features:
1.Three, Two-Pieces Forged Body
2.Both Floating Type and Fixed type
3.Blow-out Proof Stem
4.Fire Safe Design
5.Anti-Static Device
6.Interlocking Device
10.Mode of Operation:
Turbine,Manual,Electrical,
