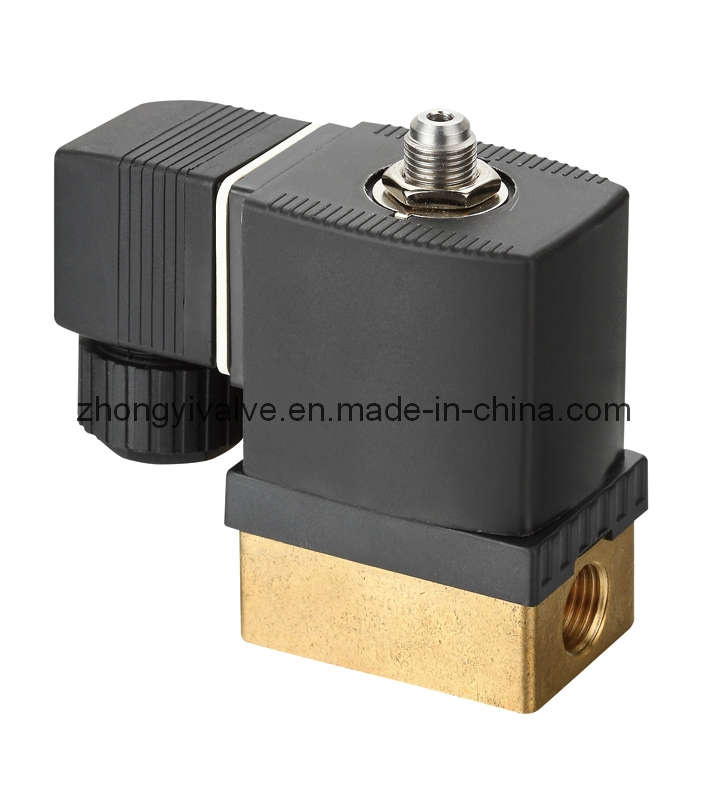

Operated way: Direct operated
Control way: Nc(standard)
Pipe size: G1/8~g1/2(standard)
Dn: Dn1~14mm
Pn: The highest pn: 4.0mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80 degree centigrade (+180degree centigrade)
Circumstance temperature: -10~+50degree centigrade
Material: Brass
Sealing material: NBR(standard)
Standard voltage: AC: 220V(50/60Hz) DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
Standard: |
Item no. |
DN
(mm) |
PIPE SIZE
(G) |
PN
(MPa) |
Kv
(m3/h) |
circumstance temperature |
medium temperature |
2231001-2025 |
1 |
1/8 |
0~0.8 |
0.02 |
-10~+50 |
-10~+80 |
2231002-2025 |
2 |
1/8 |
0~0.6 |
0.08 |
2231001-3232 |
1 |
1/8 |
0~4.0 |
0.02 |
2231002-3232 |
2 |
1/8 |
0~2.5 |
0.08 |
2231003-3232 |
3 |
1/8 |
0~1.0 |
0.16 |
2231003-3246 |
3 |
1/4 |
0~1.0 |
0.16 |
2231004-3246 |
4 |
1/4 |
0~0.6 |
0.25 |
2231005-3246 |
5 |
1/4 |
0~0.3 |
0.32 |
2231006 |
6 |
1/4~1/2 |
0~0.2 |
0.54 |
2231010F |
10 |
1/4~1/2 |
0~0.1 |
1.4 |
2231015-14F |
14 |
1/4~1/2 |
0~0.05 |
2.52 |
