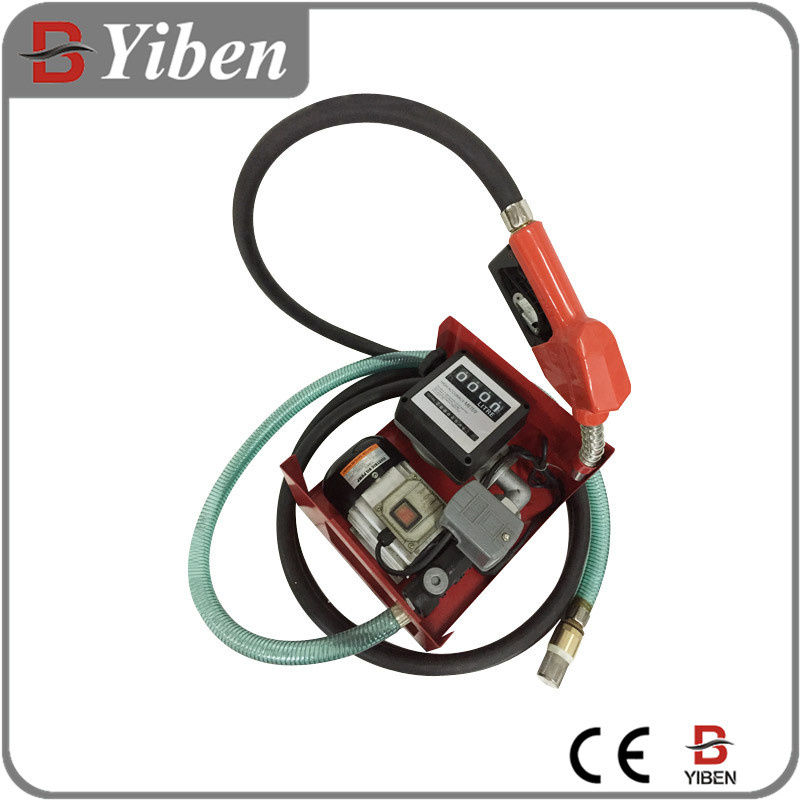

Model No.: ZYB60Auto-11A
(pump+4m delivery hose+2m suction hose +check valve+automatic nozzle+120L flowmeter)
Product introduction:
The ZYB series oil pump unit is used for pumping light oils such as diesel or kerosene for vehicles, construction sites, farms or for other fuel powered equipment.
Technical Parameters:| Model | ZYB60Auto-11A |
Complete Pump Set | pump+4m delivery hose+2m suction hose+check valve+automatic nozzle+120L flowmeter |
Rated Voltage | AC220V or AC110V |
Rated Power | 375W |
Motor Turn Speed | 2800r/min |
Pump Flow Rate | (20-60)L/min |
Meter flowrate | (20-120)L/min |
Suction Lift | 3-5m |
Head Lift | 5-10m |
In-out | In BSPT1",Out BSPT1" |
Flow Meter Digit | 4 Digit,Max.9999.9 Liter,
8 Digit Accumulated |
Environment condition:
Temperature: -25ºC---+55ºC
Relative Humidity: 30%--90%High Atmospheric Pressure:86Kpa--106Kpa
Malfunction Diagnosis & Resolution:
Common Troubleshooting |
Fault Apperance | Main Reason | Fault Resolution |
Motor does not turn | 1.The power cable is not plugged in | 1.Check the electric cable |
2.The motor has jammed | 2.Replace the motor |
3.Capacitor failure | 3.Replace capacitors |
Motor turns, but no oil output | 1.Suction side not submerged in oil | 1.Check the oil suction hose/pipe |
2.Vanes worn or gear damaged | 2.Replace vanes or gear |
Abnormal metering or no meter output | Computation swing tray has broken | Replace the computation swing tray |
Little oil-output | Plugged strainer | Clean the strainer |
Optional Product Models:

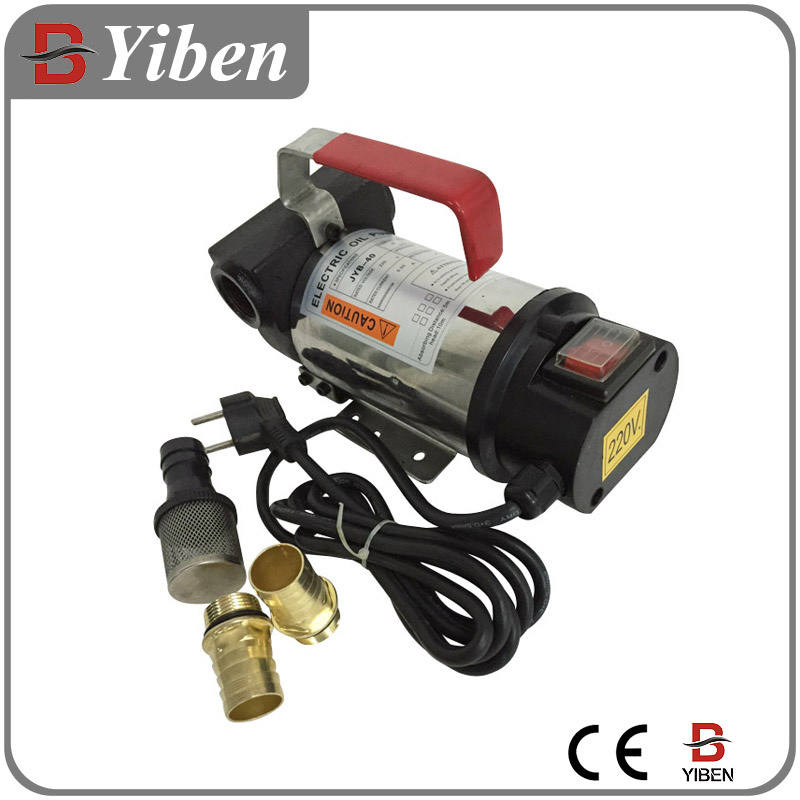

Model No.:JYB40

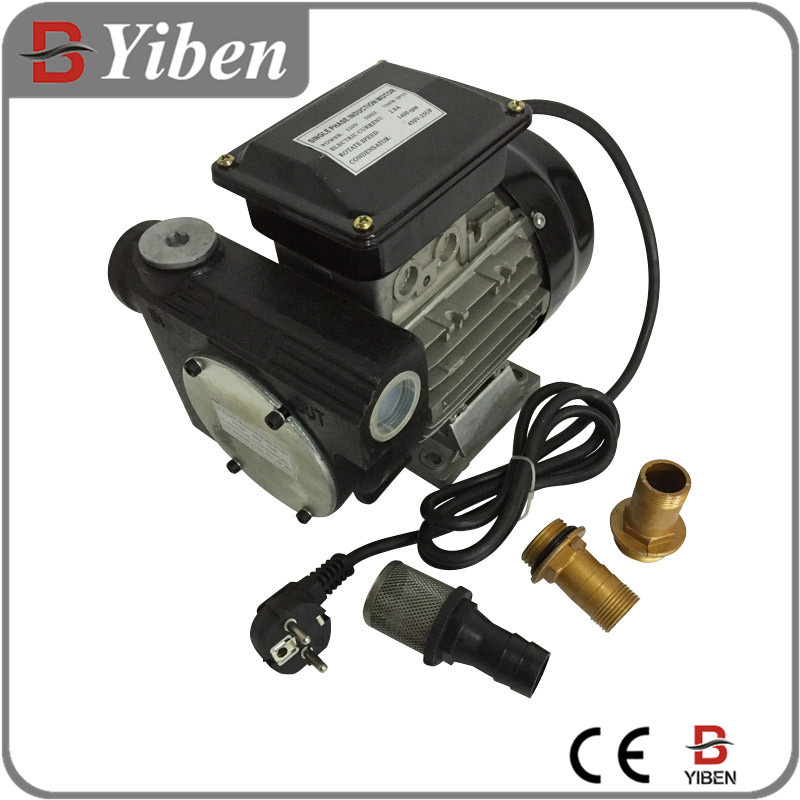

Model No.: YB80
Established in 2008, Yongjia Jiangbei Yiben Machinery Factory is a professional manufacturer in making electric fuel transfer pumps and pump kits in China. Products have CE certificate and ISO standard guarantee. Warmly welcomed by our home and abroad customers, every year over 70% products exported to overseas market such as U. S. A., European area, Southeast Asia, Middle East, Africa.
Our major products include DC12V/24V electric transfer pumps and kits, AC110V/220V electric transfer pumps and kits, Ex-Proof Pumps and their pump units. We also make fuel dispenser parts like 11A automatic nozzles, 13A manual oil nozzles, 120L flowmeter, 4m rubber deliver hose, 2m suction hose and etc. Generally, the monthly capacity is 5, 000 PCS for every model pumps.
Our electric transfer pumps can be used to deliver fuel like oil, diesel, gasoline, kerosene from the tanks to traffic transport facilities. Especially when transport facilities like trucks, tractors, cars, bulldozers, diggers, ships are far away from the gas station but with tanks at hand, they can use our pumps to deliver the fuels.
A top choice fuel dispensed equipment for field working facilities. Thus, our pumps are the modern, practical and ecological solutions for refueling agricultural machinery, worksite equipment and road-building machines.
