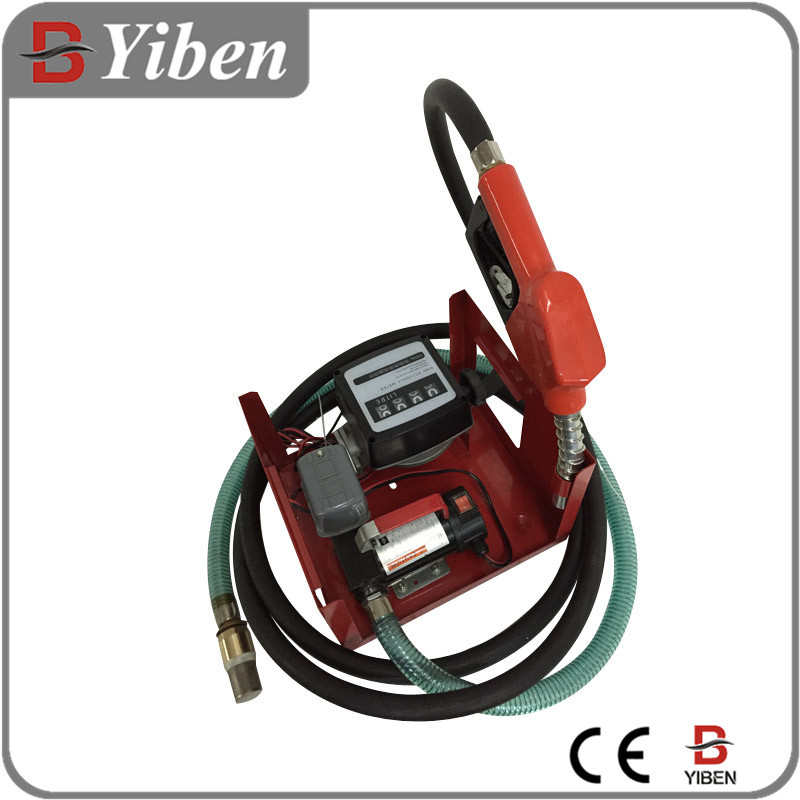

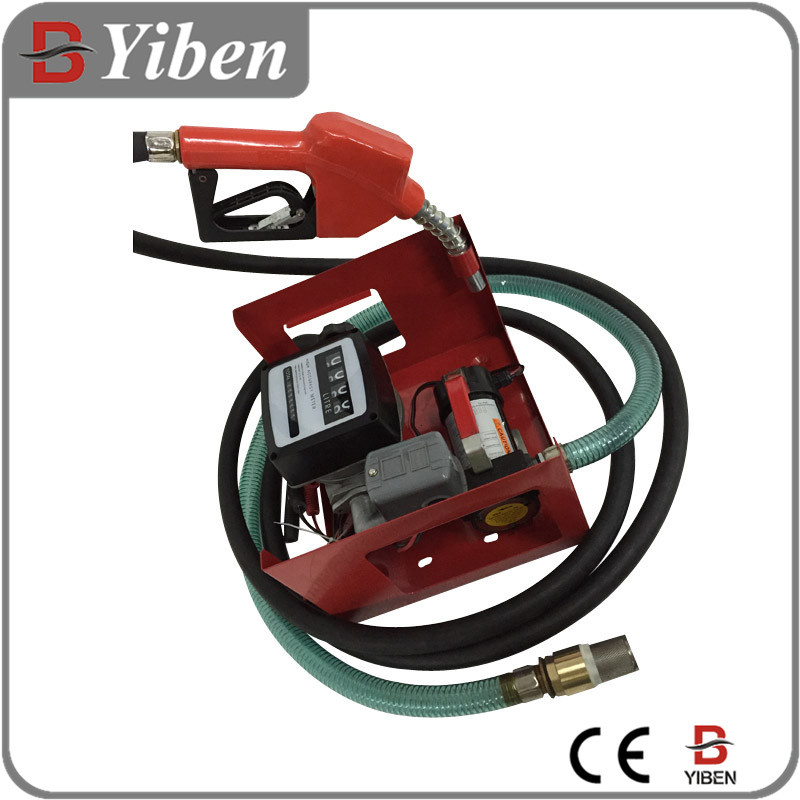

Model No.: ZYB40Auto-12V/24V-11A
(pump+4m delivery hose+2m suction hose+check valve+automatic nozzle+120L flowmeter)
Product introduction:
The ZYB series oil pump unit is used for pumping light oils such as diesel or kerosene for vehicles, construction sites, farms or for other fuel powered equipment.
Technical Parameters:Model | ZYB40Auto-12V/24V-11A |
Complete Pump Set | pump+4m delivery hose+2m suction hose+check valve+automatic nozzle+120L flowmeter |
Rated Voltage | DC12V or DC24V |
Rated Power | 155W |
Motor Turn Speed | 3200r/min |
Pump Flow Rate | (20-40)L/min |
Meter flowrate | (20-120)L/min |
Suction Lift | 3-5m |
Head Lift | 5-10m |
In-out | In BSPT3/4",Out BSPT3/4" |
Flow Meter Digit | 4 Digit,Max.9999.9 Liter, 8 Digit Accumulated |
Environment condition:
Temperature: -25ºC---+55ºC
Relative Humidity: 30%--90%High Atmospheric Pressure:86Kpa--106Kpa
Established in 2008, Yongjia Jiangbei Yiben Machinery Factory is a professional manufacturer in making electric fuel transfer pumps and pump kits in China. Products have CE certificate and ISO standard guarantee. Warmly welcomed by our home and abroad customers, every year over 70% products exported to overseas market such as U. S. A., European area, Southeast Asia, Middle East, Africa.
Our major products include DC12V/24V electric transfer pumps and kits, AC110V/220V electric transfer pumps and kits, Ex-Proof Pumps and their pump units. We also make fuel dispenser parts like 11A automatic nozzles, 13A manual oil nozzles, 120L flowmeter, 4m rubber deliver hose, 2m suction hose and etc. Generally, the monthly capacity is 5, 000 PCS for every model pumps.
Our electric transfer pumps can be used to deliver fuel like oil, diesel, gasoline, kerosene from the tanks to traffic transport facilities. Especially when transport facilities like trucks, tractors, cars, bulldozers, diggers, ships are far away from the gas station but with tanks at hand, they can use our pumps to deliver the fuels.
A top choice fuel dispensed equipment for field working facilities. Thus, our pumps are the modern, practical and ecological solutions for refueling agricultural machinery, worksite equipment and road-building machines.
