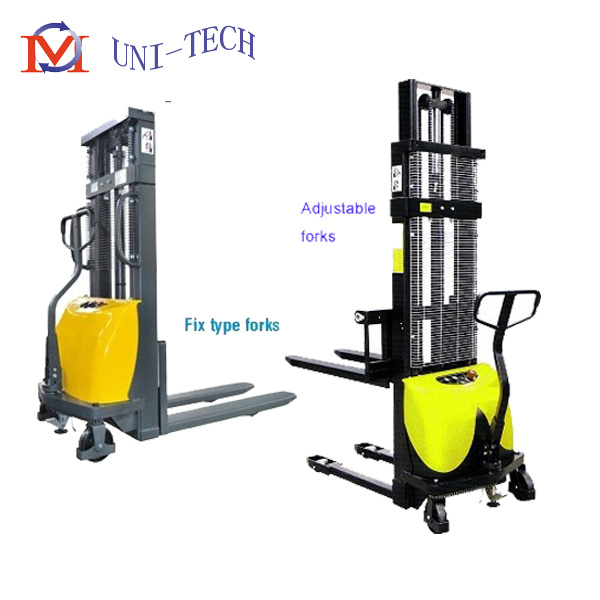

Adjustable Stacker Price Made in China (CDD15B-III)
| Price: |
US $ 1500-2000piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Adjustable stacker price MADE IN CHINA(CDD15B-III)
Specification-Advantages:
Handle-castor chain assist steering system greatly reduces the labor intensity.
Equipped with explosion-proof valve, ensure no sharp drop of platform and prevent operator from harm.
Over-discharge protection device greatly prolongs the battery use time.
With adjustable forks, which can be lowered to the same level of the legs.
Easy operating foot brake.
| MODEL |
| Fix type forks | Adjustable forks |
| CDD10B -III | CDD15B -III | CDD10B -III | CDD15B -III |
| Load capacity | Q(kg) | 1000 | 1500 | 1000 | 1500 |
| Load centre distance | c(mm) | 500 | 500 | 500 | 500 |
| Fork height, lowered | h13(mm) | 90 | 90 | 90 | 90 |
| Wheelbase | y(mm) | 1185 | 1265 | 1185 | 1265 |
| Height, mast lowered | h1(mm) | 2090/1840/2090 | 2090/1840/2090 |
| Max. lift height | h3(mm) | 1600/2500/3000 | 1600/2500/3000 |
| Height, mast extended | h4(mm) | 2090/3060/3560 | 2090/3060/3560 |
| Overall length | l1(mm) | 1678 | 1740 | 1735 | 1835 |
| Length to face of forks | l2(mm) | 608 | 670 | 665 | 765 |
| Overall width | b1(mm) | 800 | 955 |
| Fork dimensions | s/e/l(mm) | 60/170/1070 | 60/142/1070 |
| Width overall forks | b5(mm) | 580/695 | 295-930 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2288 | 2368 | 2288 | 2368 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2267 | 2347 | 2267 | 2347 |
| Turning radius | Wa(mm) | 1425 | 1505 | 1425 | 1505 |
| Lift speed, laden/unladen | m/s | 0.08/0.1 | 0.08/0.1 |
| Lowering speed, laden/unladen | m/s | 0.15/0.12 | 0.15/0.12 |
| Service brake |
| Mechanical |
| Battery voltage, nominal capacity K5 | V/Ah | 12/120 | 12/120 | 12/120 | 12/120 |
| Battery weight | kg | 45 | 90 | 45 | 90 |
| Service weight(with battery) | kg | 400/460/480 | 455/520/535 | 400/460/480 | 455/520/535 |
| Prod Model: |
CDD15B-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Loading Capacity: |
1500kg |
| Max. Lifting Height: |
3000mm |
| Min. Lifting Heigh: |
90mm |
| Fork Length: |
765mm |
| Fork Width: |
580-930mm |
| Overall Dimensions: |
1678-1835mm |
| Battery Weight: |
90kg |
| After-Sales Service Provided: |
Overseas Third-Party Support Available |
| Load Centre Distance: |
500mm |
| Type: |
Electric Jack |
| Power Source: |
Electric |
| Structure: |
Metal Construction |
| Certification: |
CE,ISO9001 |
