Semi-Electric Stacker
| Price: |
US $ 1500piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

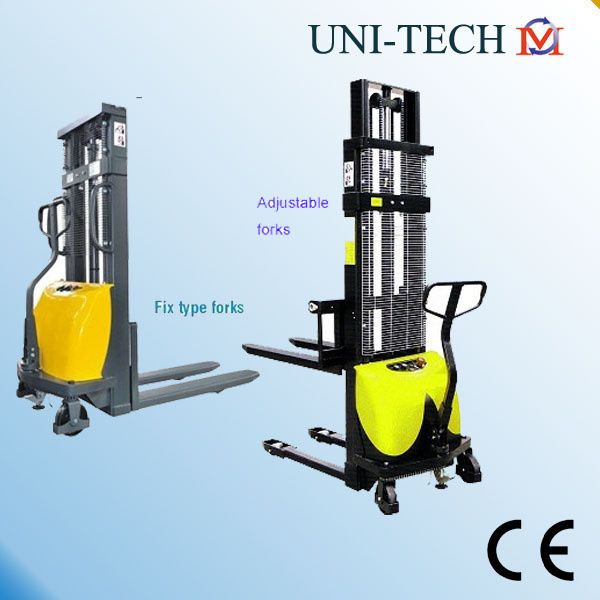

Semi-electric stacker
Specification-Advantages:
Handle-castor chain assist steering system greatly reduces the labor intensity.
Equipped with explosion-proof valve, ensure no sharp drop of platform and prevent operator from harm.
Over-discharge protection device greatly prolongs the battery use time.
With adjustable forks, which can be lowered to the same level of the legs.
Easy operating foot brake.
|
MODEL |
|
Fix type forks |
Adjustable forks |
|
CDD10B -III |
CDD15B -III |
CDD10B -III |
CDD15B -III |
|
Load capacity |
Q(kg) |
1000 |
1500 |
1000 |
1500 |
|
Load centre distance |
c(mm) |
500 |
500 |
500 |
500 |
|
Fork height, lowered |
h13(mm) |
90 |
90 |
90 |
90 |
|
Wheelbase |
y(mm) |
1185 |
1265 |
1185 |
1265 |
|
Height, mast lowered |
h1(mm) |
2090/1840/2090 |
2090/1840/2090 |
|
Max. lift height |
h3(mm) |
1600/2500/3000 |
1600/2500/3000 |
|
Height, mast extended |
h4(mm) |
2090/3060/3560 |
2090/3060/3560 |
|
Overall length |
l1(mm) |
1678 |
1740 |
1735 |
1835 |
|
Length to face of forks |
l2(mm) |
608 |
670 |
665 |
765 |
|
Overall width |
b1(mm) |
800 |
955 |
|
Fork dimensions |
s/e/l(mm) |
60/170/1070 |
60/142/1070 |
|
Width overall forks |
b5(mm) |
580/695 |
295-930 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
2288 |
2368 |
2288 |
2368 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
2267 |
2347 |
2267 |
2347 |
|
Turning radius |
Wa(mm) |
1425 |
1505 |
1425 |
1505 |
|
Lift speed, laden/unladen |
m/s |
0.08/0.1 |
0.08/0.1 |
|
Lowering speed, laden/unladen |
m/s |
0.15/0.12 |
0.15/0.12 |
|
Service brake |
|
Mechanical |
|
Battery voltage, nominal capacity K5 |
V/Ah |
12/120 |
12/120 |
12/120 |
12/120 |
|
Battery weight |
kg |
45 |
90 |
45 |
90 |
|
Service weight(with battery) |
kg |
400/460/480 |
455/520/535 |
400/460/480 |
455/520/535 |
| Prod Model: |
CDD15B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Loading Capacity: |
1500kg |
| Max. Lifting Height: |
3000mm |
| Min. Lifting Heigh: |
90mm |
| Fork Length: |
765mm |
| Fork Width: |
580-930mm |
| Overall Dimensions: |
1678-1835mm |
| Certification: |
CE,ISO9001 |
| Battery Weight: |
90kg |
| After-Sales Service Provided: |
Overseas Third-Party Support Available |
| Load Centre Distance: |
500mm |
| Power Source: |
Electric |
| Type: |
Electric Jack |
| Structure: |
Metal Construction |
