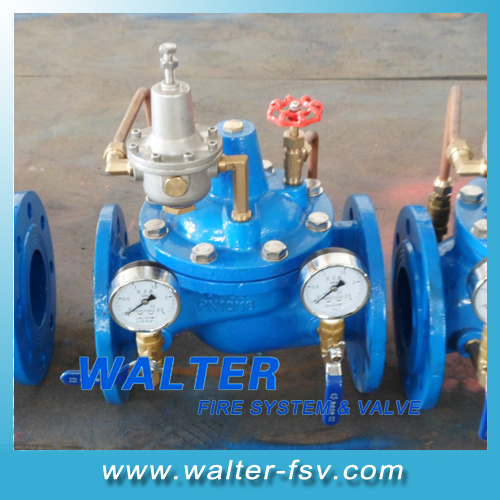

Adjustment Cast Iron Pressure Reducing Valve

Adjustment Cast Iron Pressure Reducing Valve
Price: US $ 129-150/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2/Piece
Pay Type: L/C,T/T,Western Union
Pressure Reducing Valve automatically reduces a higher inlet pressure to a steady lower downstream pressure, regardless of changing flow rate and/or varying inlet pressure.
This valve is an accurate, pilot-operated regulator capable of holding downstream pressure to a re-determined limit. When downstream pressure exceeds the pressure setting of the control pilot, the main valve and pilot valve close drip-tight.

Our Pressure Reduing Valve are adopt the lastest technologies, with fully bore design, lowest head lose when fully open.

The PRESSURE REDUCING VALVE is design with anti-cavitation for application where there is high potential for damage from Cavitation, which provide optimum internal pressure control through a unique anti-cavitation trim design.

1. Body/Bonnet: GGG50 or Stainless Steel 2. Spring: SS304

3. Stem: SS / Bronze 4. Disc Retainer: DI/SS/Bronze

5. Seat: SS/Brass 6. Seal Rings: NBR/EPDM/Viton

7. Pilot: Stainless Steel 8. Pipe or Tubes: Coppe or Stainless Steel

9. Working Pressure: PN10/16/25

10. Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129

11. Epoxy Resin Coated to 300 microns inside & outside

12. Anti-cavitation Solution

Our Pressure Reducing Valve Size from DN50 to DN1000; Also can do OEM or ODM for Pressure Reducing Valve, Float Control Valve, Pressure Relief Valve, Solenoid Control Valve.

Welcome to contact us for more details.
Prod Model: 200X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Pressure Reducing Valve
Body: Ductile Iron, Stainless Steel
Trim: Stainless Steel
Diaphgram: Nylon+EPDM/Viton
Seat: Ss / Bronze
Seal Rings: NBR/EPDM/Viton
Piolt: Brass or Stainless Steel
Pipes/Tubes: Copper or Stainless Steel
Pressure Rate: Pn10/16/25
Coating: Epoxy Resin Coated to 300 Microns Inside & Outside
