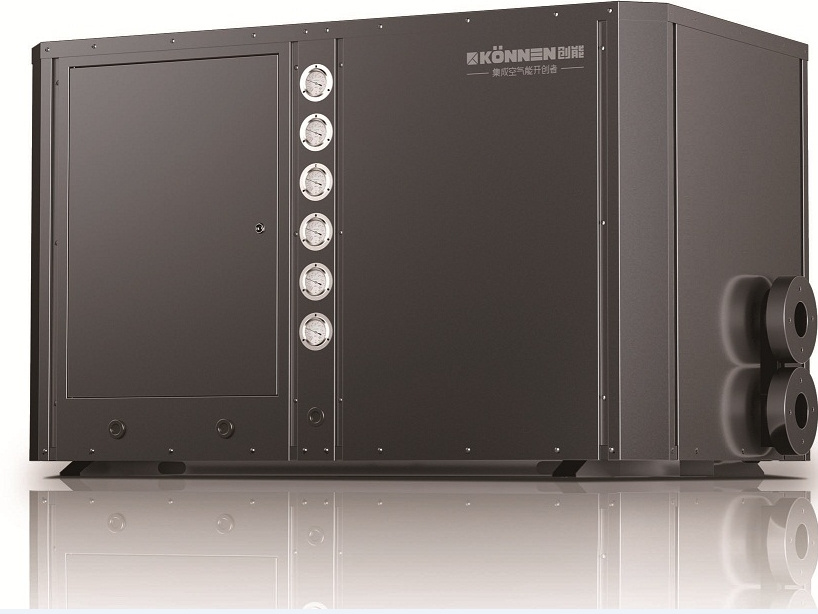

Air conditioner ground source heat pump
Geothermal Heat Pump
1) it can be worked as an air conditioner, and while the same time, it can provide you with hot water; Also can be worked separately, such as an air conditioner or water heater.
2) LCD display controller, easy and automatic control.
3) insufficient water flow protection of heat pump
4) high/low pressure protection of heat pump.
5) automatic reversing defrosting function enables, units to work reliably in hard winter.
Wä Rmepumpe, wä Rme pumpe, pompa ciepa, pompy ciepa, bomba calor, pompe chaleur, pompa di calore, α ν τ λ α θ ρ μ τ η τ α , varmepumpe, varmepumpen, varme pumpe, warmtepomp, warmte pomp, tepelné Erpadlo, hszivattyú , hszivattyú S, s pompas, toplinska pumpa, siltumsknis, toplinska pumpa, toplinska crpka, ilumos siurblys, soojuspump, bomba calor
6) unit runs automatically according to set water temperature.
7) qualified components: Branded compressor, emerson expansion valve, high efficient heat exchanger, durable and low noise fans.
|
|
CRS8I/J |
CRS12/J |
CRS15/J |
CRS18/J |
CRS20/J |
CRS30/JT |
CRS40/JT |
CRS60/JT |
CRS70/JT |
CRS80/JF |
CRS100/JF |
CRS130/JF |
|
(CS02W025A) |
( CS02WF040A) |
( CS02W050A) |
( CS02W060A) |
( CS02W070A) |
( CS02W100A) |
( CS02W140A) |
( CS02W200A) |
( CS02W240A) |
( CS02W280A) |
( CS02W360A) |
( CS02W480A) |
|
Water loop type |
Rated cooling capacity |
KW |
8 |
12 |
15 |
18 |
20 |
30 |
40 |
60 |
70 |
80 |
100 |
130 |
|
Rated heating capacity |
KW |
8.7 |
13.1 |
16.3 |
19.6 |
21.8 |
32.7 |
43.6 |
65.3 |
76.2 |
87.1 |
108.9 |
141.6 |
|
Rated input power for cooling |
KW |
2.0 |
3.0 |
3.7 |
4.5 |
5.0 |
7.5 |
10.0 |
15.0 |
17.5 |
19.9 |
24.9 |
32.4 |
|
Rated input current for cooling |
A |
10.2 |
5.7 |
7.1 |
8.5 |
9.5 |
14.2 |
18.9 |
28.4 |
33.2 |
37.9 |
47.4 |
61.6 |
|
Rated input power for heating |
KW |
2.1 |
3.2 |
4.0 |
4.8 |
5.3 |
7.9 |
10.6 |
15.9 |
18.5 |
21.1 |
26.4 |
34.4 |
|
Rated input current for heating |
A |
10.8 |
6.1 |
7.6 |
9.1 |
10.1 |
15.2 |
20.2 |
30.3 |
35.4 |
41.1 |
51.4 |
66.8 |
|
Underground water type |
Rated cooling capacity |
KW |
8.5 |
12.8 |
15.9 |
19.1 |
21.3 |
31.9 |
42.5 |
63.8 |
74.4 |
85.1 |
106.3 |
138.2 |
|
Rated heating capacity |
KW |
6.8 |
10.2 |
12.7 |
15.2 |
16.9 |
25.4 |
33.8 |
50.8 |
59.2 |
67.7 |
84.6 |
110.0 |
|
Rated input power for cooling |
KW |
1.6 |
2.5 |
3.1 |
3.7 |
4.1 |
6.1 |
8.2 |
12.3 |
14.3 |
16.4 |
20.4 |
26.6 |
|
Rated input current for cooling |
A |
8.4 |
4.7 |
5.8 |
7.0 |
7.8 |
11.7 |
15.5 |
23.3 |
27.2 |
31.1 |
38.8 |
50.5 |
|
Rated input power for heating |
KW |
1.8 |
2.7 |
3.3 |
4.0 |
4.5 |
6.7 |
8.9 |
13.4 |
15.6 |
17.9 |
22.3 |
29.0 |
|
Rated input current for heating |
A |
9.2 |
5.1 |
6.4 |
7.6 |
8.5 |
12.7 |
17.0 |
25.5 |
29.7 |
33.9 |
42.4 |
55.2 |
|
Ground source closed loop |
Rated cooling capacity |
KW |
8.4 |
12.6 |
15.7 |
18.9 |
21.0 |
31.4 |
41.9 |
62.9 |
73.4 |
83.8 |
104.8 |
136.2 |
|
Rated heating capacity |
KW |
6.7 |
10.0 |
12.5 |
15.0 |
16.6 |
24.9 |
33.3 |
49.9 |
58.2 |
66.5 |
83.1 |
108.1 |
|
Rated input power for cooling |
KW |
1.8 |
2.7 |
3.4 |
4.1 |
4.6 |
6.8 |
9.1 |
13.7 |
15.9 |
18.2 |
22.8 |
29.6 |
|
Rated input current for cooling |
A |
9.3 |
5.2 |
6.5 |
7.8 |
8.7 |
13.0 |
17.3 |
26.0 |
30.3 |
34.6 |
43.3 |
56.3 |
|
Rated input power for heating |
KW |
2.0 |
2.9 |
3.7 |
4.4 |
4.9 |
7.3 |
9.8 |
14.7 |
17.1 |
19.6 |
24.4 |
31.8 |
|
Rated input current for heating |
A |
10.0 |
5.6 |
7.0 |
8.4 |
9.3 |
13.9 |
18.6 |
27.9 |
32.5 |
37.2 |
46.5 |
60.4 |
|
Power supply |
|
380V/50Hz |
|
Compressor |
Type |
|
Fully closed scroll type |
|
Start mode |
|
|
Quantity |
PCS |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
4 |
4 |
4 |
|
Energy regulation |
% |
|
0 , 50 , 100 |
0,25,50,75,100 |
|
Heat source side heat exchanger |
Type |
|
Shell & tube heat exchanger |
|
Water flow |
M 3 /h |
1.7 |
2.6 |
3.2 |
3.9 |
4.3 |
6.5 |
8.6 |
12.9 |
15.1 |
17.2 |
21.5 |
28.0 |
|
Water pressure drop |
KPa |
|
< 70 |
|
Pipe size |
DN |
DN20 |
DN20 |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
DN50 |
DN50 |
DN65 |
DN65 |
DN65 |
|
Use side heat exchanger |
Type |
|
Shell & tube heat exchanger |
|
Water flow |
M 3 /h |
1.4 |
2.1 |
2.6 |
3.1 |
3.4 |
5.2 |
6.9 |
10.3 |
12.0 |
13.8 |
17.2 |
22.4 |
|
Water pressure drop |
KPa |
|
< 70 |
|
Pipe size |
DN |
DN20 |
DN20 |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
DN50 |
DN50 |
DN65 |
DN65 |
DN65 |
|
Protections |
|
|
Refrigerant |
Type |
|
|
Throttle type |
|
|
Quantity |
KG |
1.5 |
1.8 |
2.9 |
3.1 |
3.3 |
2.9x2 |
3.3x2 |
7.6x2 |
8.5x2 |
11.8x2 |
7.6x4 |
8.6x4 |
|
Unit dimensions |
Length |
MM |
709 |
709 |
810 |
810 |
810 |
1100 |
1100 |
1800 |
1800 |
2000 |
2000 |
2000 |
|
Width |
MM |
359 |
359 |
420 |
420 |
420 |
840 |
840 |
1150 |
1150 |
1200 |
1200 |
1200 |
|
Height |
MM |
591 |
591 |
590 |
590 |
590 |
800 |
800 |
1050 |
1050 |
1000 |
1000 |
1000 |
|
Noise |
≤DB ( A ) |
35 |
38 |
35 |
35 |
35 |
50 |
50 |
56 |
62 |
63 |
65 |
68 |
|
Weight |
KG |
60 |
85 |
115 |
118 |
120 |
180 |
190 |
700 |
730 |
850 |
860 |
890 |
Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!
Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.
We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
