1. Compressor: Use world famous scroll compressor, high efficiency, low noise, long lifetime.
2. Evaporator: Use internal thread copper and hydrophilic aluminium foil type heat exchanger
3. Condenser: Use titanium material, anticorrosive.
4. Expansion valve: Use electric expansion valve
5. Defrost: Deforst and anti-freezing automatically
6. Controller: Intelligent control
|

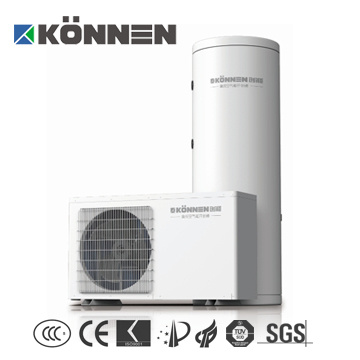

Product: CEN New Air Source Heat Pump Domestic Type (circulating model) |
|
|
KXRS-3.5 IH |
KXRS-5.0 IH |
KXRS-7.0 IH |
KXRS-9.0 IH |
|
Rated Heating capacity (KW) |
3.5 |
5 |
7 |
9 |
|
Rated outlet hot water quantity (L/H) |
75 |
107 |
150 |
193 |
|
Outlet water rated temp |
55 |
|
Outlet water max temp |
60 |
|
electricity parameter |
Rated power (KW) |
0.9 |
1.24 |
1.71 |
2.26 |
|
Rated current (A) |
4.1 |
5.6 |
7.8 |
10.3 |
|
Power supply |
220V~240V/50HZ, single phase |
|
Max power (KW) |
1.25 |
1.58 |
2.25 |
2.72 |
|
Max current (A) |
5.7 |
7.2 |
10.3 |
12.4 |
|
Refrigerant |
R410a |
|
Dimensions mm |
950*360*560 |
1010*360*630 |
|
Weight KG |
40 |
60 |
67 |
72 |
|
Waterproof grade |
IPX4 |
|
Defend electric shock grade |
GRADE 1 |
|
Noise Db |
low than 50Db |
low than 53Db |
|
Compressor |
Pansonic |
|
Testing Conditions |
Ambient Temperature |
Water Inlet/Outlet Temp. |
|
Dry Bulb Temp. |
Wet Bulb Temp. |
Water Inlet Temp. |
Set temperature |
|
20°C |
15°C |
15°C |
55°C |
|
Water Tank |
|
Specifications |
150L |
200L |
300L |
500L |
|
Pipe size (mm) |
2 x DN15 |
2 x DN20 |
|
Water Tank Size |
φ470 x 1390 |
φ520 x 1535 |
φ620 x 1455 |
φ700 x 1775 |
|
Installation |
floor type |
|
Concurrent User |
3-4 people |
4-5 people |
6-8 people |
10-13 people |
Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!
Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.
We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
