Alumina Ceramic Lessing Ring for Random Packing
| Price: |
US $ 0.0001/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T |

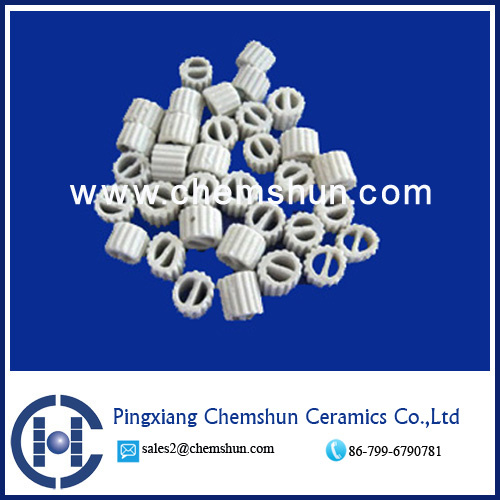

Alumina Ceramic Lessing Ring for Random Packing (AL2O3: 15-22%)
Alumina Ceramic Lessing Ring is a packing designed basically from the Raschig Ring with the partitions inside to increase the surface and enhance the transfer efficiency. It is usually used extensively for the supporting packing at the bottom of tower.
Applications:
Distillation,
Absorption columns,
Steam striping,
Condensing.
Size:
10mm, 12mm, 16mm, 25mm,etc.
Industry
petrochemical engineering,environmental protection,etc.
Specification
| Al2O3 | SiO2 | Fe2O3 | CaO | K2O+Na2O | TiO2 | MgO |
| 17%-23% | >70% | <1% | 1-2% | 2-4% | <0.5% | <2.5% |
| Moh's hardness (scale) | Bulk Gravity(g/cm3) | Water absorption | Ignition loss | Heat resistance | Alkali Resistance | Acid Resistance |
| ≥6.5 | 2.1~2.4 | <0.9% | ≤0.3% | Up to 980ºC | >80% | >98% |
Company Information
| Company Type | Audited Manufacturer by SGS |
| Founded | Since 2002, Specializing in producing and developing wear resistant alumina ceramics |
| Capacity | 5000tons per year |
| Team | Professional service team to provide good services from design, sale, delivery,export and
after sale in all processes. |
|
| Quality Control | 1.Strict quality control, set up Q.C.to inspect the semi-finished product
and finished product in separately ;
Advance technology control the passing rate above 95% to down the cost in effectively
and the price is more better. |
| Prod Model: |
ceramic ring |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Alumina Ceramic Lessing Ring |
| Materials: |
Alumina |
| Alumina Content: |
15-22% |
| Water Absorption: |
<4% |
| Partical Density(g/cm3): |
2.1~2.4 |
| Moh's Hardness(Scale): |
6.5 |
| Size: |
10mm, 12mm,16mm |
| Heat Resistance Up To: |
980 Degree Centigrade |
| Feature: |
Increase The Surface and Enhance The Transfer Effi |
| OEM: |
Accept |
| Material: |
Ceramic |
| Structure Feature: |
Ring Form Filler |
| Type: |
Random Packing |
| Usage: |
Chemical Engineering |
| Source: |
Particle |
| Packing: |
With Valve Bags |
| Effect: |
Tower Packing |
Pingxiang Chemshun ceramics Co., Ltd is a manufacturer of 95%Al2O3 alumina wear ceramic products. Chemshun ceramics was established in 2002, we have 12 years of professional producing and import & exporting experierence. We have the products and service of: Design, produce, sell, Our products range as follows:
1) 95% Alumina wear resistant product and high quality grinding media. (we also can supply the Al2O3: 92% products according to detailed requirement): Ceramic liner, alumina tile, alumina pipe, ceramic blocks, abrasion resistant lining, lined pipe and fitting, linings, wear-resistance ceramic linings, pre-engineered, custom designed alumina ceramic, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc. We not only afford the products but also can afford the engineer service and on-site fixing.
2)High quality Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.
Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. With the predominance be of honesty, efficiency, specialty and innovation, Pingxiang chemshun ceramics Co., Ltd will satisfy global makket requirement.
Has strong research and production capability, with an annual production capacity of 4000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
