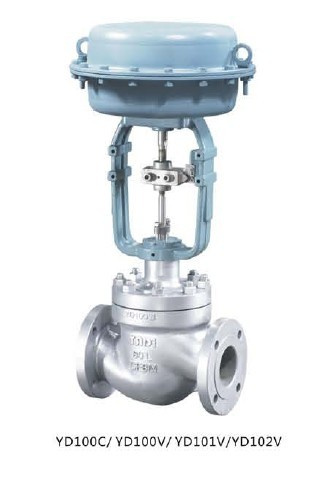

YD101V series Labyrinth type control valve
This YD101V series Labyrinth type control valve is designed with labyrinth multistage pressure reduction type trim, So it is well-suited to handle severe process applications.
Standard features include:
1. Eliminate velocity problem of cavitations, high noise, and pipe vibration, multistage pressure reduction is achieved through labyrinth.
2. Double seal packing is able to assure zero leakage and compliance with the clean air act.
Specifications of YD101V series Labyrinth type control valve:
1)Body type: YD101V
2)Body size: 1"~12" (25A~300A)
3)Body rating: ANSI Class150~2500, PN1.0 MPa ~PN42 MPa
4)Fluid temp.: -196~+538 Deg. (565Deg. Can be up to 565Deg. Under high pressure)
5)Connections: (RF\MFM\RJ), (50A SW, 80ABW)
Flange(RF\MFM\RJ), Weld ends (SW: 2" and under, BW: 3" and over)
6)Body materials: WCB(A105)\WC6(15CrMo)\CF8(304SS)\CF8M(316SS), etc.
7)Trim materials: 410SS/HT\304SS\316SS\17-4pH, etc.
8)Rangeability: 20: 1~50: 1
9)Flow characteristics: \\ Equal percentage\Linear\ Modified EQ%
10)Leakage: Metal seat: Rated CV× 0.01%, ANSI Class IV, Vor MSS-SP-61;
Soft seat: Bubble-tight, ANSI Class VI
11)Actuator: DY00LAPneumatic Diaphragm Actuator
PY00LAPneumatic Cylinder Actuator
EK00LA\EQ00LASolid State Electronic Actuator
If you are interested in YD101V series Labyrinth type control valve, please don't hesitate to contact us!
