Detailed Description

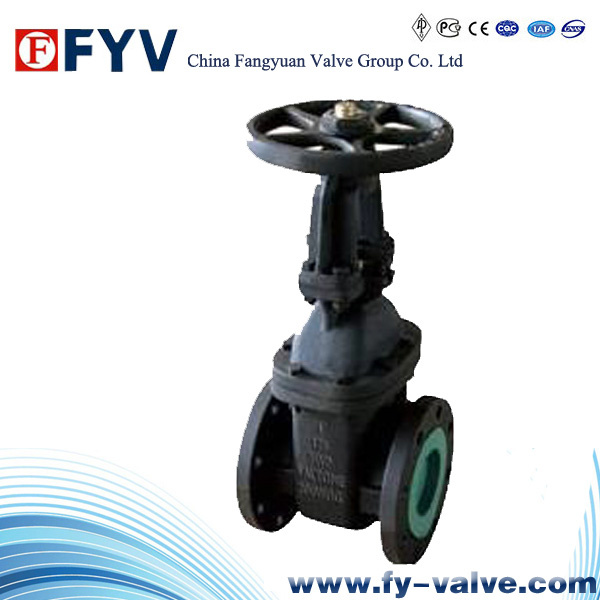

Detailed introduction to API (RF/RTJ) FLANGED GATE VALVE 150~2500LB:
Gate Valve, Bolt Bonnet, OS&Y
Gate Valve, ASME B16.5 Flanged or Butt-Welding Ends, Bolted Bonnet,
One-Piece Flexible or Solid Wedge Gate, Full Port, Outside Screw and Yoke,
Integral Body Seats or Separate Seat Rings (Threaded or Welded In Place),
Non-Rising Handwheel, Gearbox, or Power Actuator Operated,
Non-Rotating Rising Stem, Complete with Conical Stem Backseat
Design: API 600 / BS 1414 / ISO 10434
Testing: API 598 / BS 6755-1 / ISO 10434
ANSI Class 150: 2" to 36"
ANSI Class 300: 2" to 24"
ANSI Class 600: 2" to 24"
ANSI Class 900: 2" to 20"
ANSI Class 1500: 2" to 16"
ANSI Class 2500: 2" to 8"
Shell Materials: Carbon Steels ASTM A216 Grades WCB and WCC
Alloy Steels ASTM A217 Grades WC1, WC6, WC9 and C5
Impact-Tested Carbon-Manganese Steels ASTM A352 Grades LCB and LCC
Corrosion-Resistant Steels ASTM A351 Grades CF3, CF3M, CF8 and CF8M
Duplex ASTM A890 Grade 4A
Face to face dimensions: ANSI/ASME B16.10.
Flange connection: ANSI/ASME B16.5 for NPS24, ASME B16.47A/MSS SP-44 for NPS>24.
Butt-welding end dimensions: ANSI/ASME B16.25.
Socket-welding dimensions: ANSI/ASME B16.11.
Inspection & test standard: API6D, API598.
Pressure: 150Lb, 300Lb, 600Lb, 900Lb or PN 2.0MPa~PN 15.0MPa or JIS 10K, 20K.
Nominal diameters: 2~ 24"or DN50~DN600.
Major materials: WCB, WC1, WC6, WC9, A105, CF8(304), CF8M(316), CF3(304L), CF3M(316L), etc.
Driving styles: Manual/electric/conical gear/pneumatic, etc.
Material:
- Body:SCS
- Bonnet:SCS
- Stem:SUS304/SUS316
- Disc:SCS
- Gland:SCS
- Gland Packing:PTFE/GRAPHITE
- Hand Wheel:DUCTILE IRON
- Gasket: PTFE/GRAPHITE
- Bonnet/Bolt/Nut:A193-B8/A194-8
- Gland Bolt/Nut: :A193-B8/A194-8
- Yoke Sleeve:Bronze
NPS | Reduced | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
|
| Full |
| 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| L | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 |
| H(OPEN) | 158 | 158 | 169 | 197 | 236 | 246 | 283 | 330 |
| W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Weights | Bolted | 2.1 | 2.0 | 2.3 | 4.3 | 5.9 | 6.9 | 11.1 | 15.2 |
| Welded | 1.8 | 1.7 | 2.0 | 3.8 | 5.1 | 6.1 | 10.2 | 14.2 |
