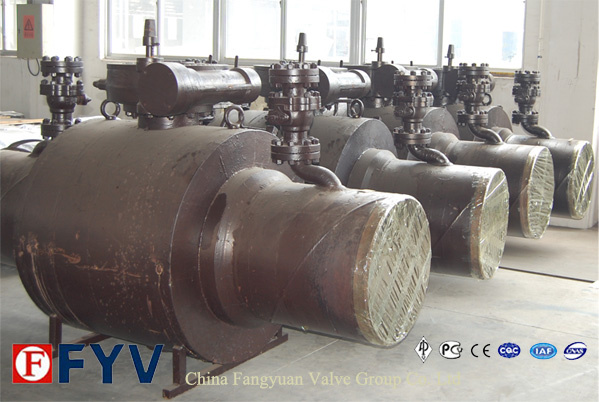

FULLY WELDED BALL VALVE
Fully Welded Body, Full Bore or Reduced Bore
Size: 2"-40"
Pressure: Class 150-900Lb
Material: A105, LF2, F304B, F316, F304, F304L, F51
Operation: Manual, Electric, Pneumatic, Hydraulic
Standards Compliance
Design and Manufacture: API6D, BS 5351, API 608
Face to face(end to end): API 6D/ ANSI B16.10/BS4460
Butt welded end: ANSI B16.25
Test and inspection: API 6D, API 598, ISO 5208, BS 6755
1. Bow-out proof stem
For the purpose of preventing the stem from flying off resulting in abnormal rising of the inner pressure of valve, shoulder is fixed at the lower part of the stem. In addition, in order to prevent leakage resulting from burnout of packing set of the stem in a fire, thrust bearing is set at the contact position of the shoulder at lower part of the stem and valve body. Thus an inverse seal seat is formed which will prevent leakage and avoid accident.
2. Anti-fire safe design
When the trunnion ball valve be used normally, its sealed by seat and ball surface, seat retainer sealed by O-ring and body, this is soft sealed and reliable sealing. When the seat and O-ring are burnt, the seat retainer and body will be sealed by expanded graphite. Thus act anti-fire safe purpose.
3. Anti-static device
In order to prevent friction among ball, stem and PTFE that generates static electricity which may light the combustibles and explosives that cause an accident, in this ball valve, static-conduction spring is set between the stem and the ball, the stem and the body. Thus static electricity is conducted to ground and system safety is secured.
4. Free leakage of body Sealed construction
The connective position of valve body and bonnet is double sealed by gasket and O-ring, on this base, such factors as fire, high temperature, shock and uneven opening or closing of the torque all can't induce external leakage.
5. Low torque in operation
The self-lubricated bearings are installed at the friction of stem, resulting in wear resistance, fiexibility of operation and low torque.
6. Double block&bleed(DBB)
When ball is full open or close position, the transmitter substance in center cavity of body can be released by drainage and emptying devices. In addition, the over loaded pressure in the center cavity of valve can be released to low pressure end by self relief seat.
7. Emergency sealing
Compound injection holes are designed and compound injection valves are installed at locations of stem/cap and body support of side valve. When sealing of stem or seat is damaged to induce leakage, the compound can be used to do the second time sealing. A concealed check valve is installed in side of each compound injection valve to prevent compound from out flowing due to the action of transmitter substance. The top of the compound injection valve is the connector for fast connection with compound injection gun.
8. Extension stem
For the underground installed valve, the stem can be lengthened and for the convenience of operation the corresponding compound injection nozzle and drainage valve can be extended to the top of valve.
9. Automatic body cavity relief
When the body pressure going up un-normally as the unstable factor, the trunnion ball valve downstream seat will be pushed by un-normally pressure, and the release the unnormalpressure automatically, it doesn't damage to the sealing of upstream seat.
10. Various driving types
The top pad of valve designed according to ISO 5211, which is convenient for connection and exchange of various drivers. The common driving types are manual, electrical, pneumatic and pneumatic/hydraulic.
Size: |
2"-24" (DN50~DN600) (Full Bore) |
3"-32" (DN80~DN800)(Reduced Bore) |
Temperature:-104°C~+280°C |
Pressure: ANSI 150lb, 300lb,600lb,900lb,1500lb,2500lb |
Body: A216WCB,A352LCB,LCC,A351CF8,CF8M,CF3,CF3M,A890 4A,A890 5A,A890 6A,Hastelloy A,Hastelloy B,Hastelloy C,20 Alloy |
Disc or Ball:A216 WCB (A105) ENP,A216WCB(A105)Hcr,A182,F304,F316,F304L,F316L,F51 |
Stem:AISI 4140,A182 F6a,F304,F316,F304L,F316L,F51,17-4PH,17-7PH |
Seat:PTFE R.PTFE PEEK NYLON Pa 12 PPL |
Operation: Lever,Gear,Pneumatic & Electric Actuator |
